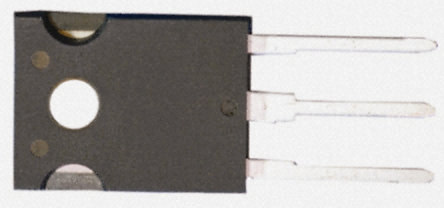

STW23NM60ND - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC86480426
Category:
MOSFET, MOSFET Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
N-channel 600V, 0.15Ω, 19.5A, FDmesh II Power MOSFET (with fast diode) TO-247
Stock Locations:
Availability:
3,029 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STW23NM60ND Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Polarity	N-Channel
Power Dissipation	150W (Tc)
Drain to Source Voltage (Vds)	600 V
Rise Time	19 ns
Input Capacitance (Ciss)	2050pF @50V(Vds)
Input Power (Max)	150 W
Fall Time	42 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150W (Tc)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
