Description
- Benefits:
- RoHS Compliant
- Qualified MSL1
- Low Profile (less than 0.7 mm)
- Dual Sided Cooling
- Optimized for Synchronous Rectification
- Low Conduction Losses
- High Cdv/dt Immunity

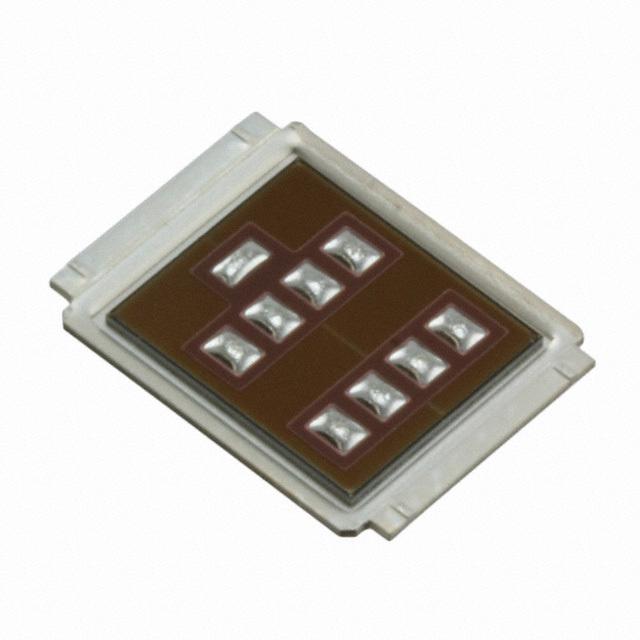

IRF7739L1TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 15 Pin |
| Case/Package | Direct-FET |
| Power Rating | 125 W |
| Number of Positions | 15 Position |
| Polarity | N-Channel |
| Power Dissipation | 125 W |
| Threshold Voltage | 2.8 V |
| Drain to Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Ids) | 46A |
| Rise Time | 71 ns |
| Input Capacitance (Ciss) | 11880pF @25V(Vds) |
| Fall Time | 42 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.8W (Ta), 125W (Tc) |
| Show | |
| Size-Length | 9.15 mm |
| Size-Width | 7.1 mm |
| Size-Height | 0.74 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
