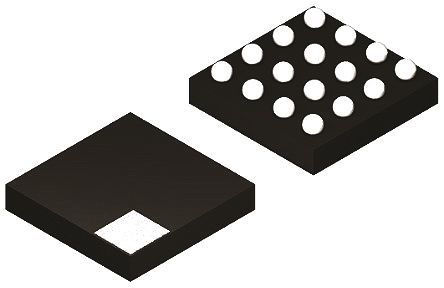

Image is for your reference only,please check specifications for details
- FAN48630UC315X - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC86455811
-
Category:DC to DC Converter
-
Package:WLCSP-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.35V to 5.5V Step Up Dual-Out 3.15V/3.33V 1.5A 16Pin WLCSP T/R
-
Stock Locations:
-
Availability:9,925 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The FAN48630 allows systems to take advantage of new battery chemistries that can supply significant energy when the battery voltage is lower than the required voltage for system power ICs. By combining built-in power transistors, synchronous rectification, and low supply current; this IC provides a compact solution for systems using advanced Li-Ion battery chemistries.
- Features
- ■ Few External Components: 0.47 µH Inductor and 0603 Case Size Input and Output Capacitors
- ■ Input Voltage Range: 2.35 V to 5.5 V
- ■ Fixed Output Voltage Options: 3.0 V to 5.0 V
- ■ Maximum Continuous Load Current: 1500 mA at VIN of 2.6 V Boosting VOUT to 3.5 V
- ■ Up to 96% Efficient
- ■ True Bypass Operation when VIN > Target VOUT
- ■ Internal Synchronous Rectifier
- ■ Soft-Start with True Load Disconnect
- ■ Forced Bypass Mode
- ■ VSEL Control to Optimize Target VOUT
- ■ Short-Circuit Protection
- ■ Low Operating Quiescent Current
- ■ 16-Bump, 0.4 mm Pitch WLCSP
- Applications
- ■ Boost for Low-Voltage Li-ion Batteries, Brownout Prevention, Boosted Audio, USB OTG, and LTE / 3G RF Power
- ■ Cell Phones, Smart Phones, Portable Instruments
FAN48630UC315X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | WLCSP-16 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.15 V |
| Output Current | 1.5 A |
| Switching Frequency | 2.5 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.35 V |
| Output Voltage (Max) | 3.33 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 1.78 mm |
| Size-Width | 1.78 mm |
| Size-Height | 0.378 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
