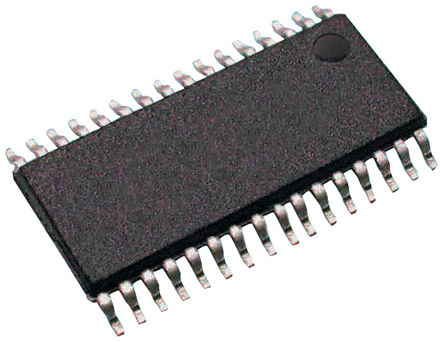

Image is for your reference only,please check specifications for details
- TLC5923DAP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC27250553
-
Category:LED Driver, LED Display Driver
-
Package:HTSSOP-32
-
Datasheet:Datasheet 3D Model
-
Description:Led Driver, 16Outputs, Constant Current, 3V-5.5V in, 30MHz switch, 17V/90mA out, HTSSOP-32
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.7
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLC5923DAP is a 16-channel constant-current LED Sink Driver with dot correction. Each channel has a on/off state and a 128-step adjustable constant current sink (dot correction). The dot correction adjusts the brightness variations between LED, LED channels and other LED drivers. Both dot correction and on/off state are accessible via a serial data interface. A single external resistor sets the maximum current of all 16 channels. The TLC5923 features two error information circuits. The LED open detection (LOD) indicates a broken or disconnected LED at an output terminal. The thermal error flag (TEF) indicates an over-temperature condition.
- Serial data interface
- CMOS level input/output
- Controlled in-rush current
- Error information - LED open detection and thermal error flag
- ±1% Typical constant current accuracy
- 10ns Typical fast switching output
- Green product and no Sb/Br
TLC5923DAP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | HTSSOP-32 |
| Frequency | 30 MHz |
| Supply Voltage (DC) | 5.50V (max) |
| Number of Outputs | 16 Output |
| Input Voltage (DC) | 3.00V ~ 5.50V |
| Output Voltage | 17 V |
| Output Current | 90.0 mA |
| Supply Current | 65000 mA |
| Number of Positions | 32 Position |
| Power Dissipation | 3900 W |
| Switching Frequency | 30 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 17 V |
| Output Current (Max) | 90 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 3900 mW |
| Supply Voltage | 3V ~ 5.5V |
| Show | |
| Size-Length | 11 mm |
| Size-Width | 6.2 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
