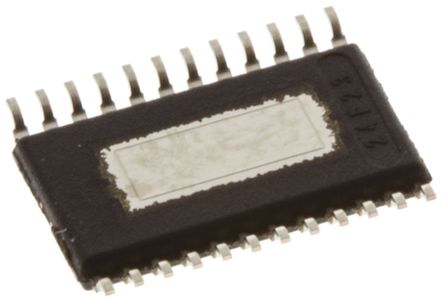

Image is for your reference only,please check specifications for details
- TLC5926IPWPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6592071
-
Category:LED Driver, LED Display Driver
-
Package:HTSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Led Driver, 16Outputs, Constant Current, 3V-5.5V in, 30MHz switch, 17V/120mA out, HTSSOP-24
-
Stock Locations:
-
Availability:256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.56
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLC5926IPWPR is a 16-channel Constant Current LED Sink Driver designed for LED displays and LED lighting applications with open-load, shorted-load and over-temperature detection and constant-current control. The TLC5926 contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. At the output stage, 16 regulated-current ports provide uniform and constant current for driving LEDs within a wide range of VF (forward voltage) variations. Used in systems designed for LED display applications (for example, LED panels), TLC5926 provides great flexibility and device performance. Users can adjust the output current from 5 to 120mA through an external resistor Rext, which gives flexibility in controlling the light intensity of LEDs. The TLC5926 is designed for up to 17V at the output port. The high clock frequency 30MHz also satisfies the system requirements of high-volume data transmission.
- 16 Constant-current output channels
- Output current adjusted through single external resistor
- Constant output current range (5 to 120mA)
- Constant output current invariant to load voltage change
- Open load and short load detection
- 256-step Programmable global current gain
- Excellent output current accuracy
- 30MHz Clock frequency
- Schmitt-trigger inputs
- Thermal shutdown for over-temperature protection
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TLC5926IPWPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | HTSSOP-24 |
| Frequency | 30 MHz |
| Number of Outputs | 16 Output |
| Output Voltage | 17 V |
| Output Current | 120 mA |
| Supply Current | 20000 mA |
| Number of Positions | 24 Position |
| Power Dissipation | 2900 W |
| Switching Frequency | 30 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 20 V |
| Output Current (Max) | 120 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2900 mW |
| Supply Voltage | 3V ~ 5.5V |
| Input Voltage | 3V ~ 5.5V |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
