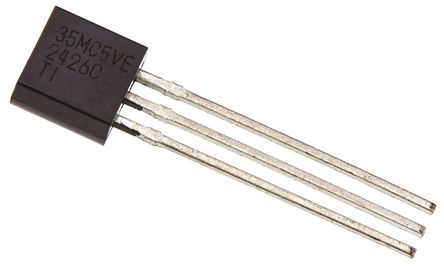

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE2426CLP is a "Rail Splitter" Precision Virtual Ground Voltage Reference for signal-conditioning applications utilizing a single power source. The precision virtual ground whose output voltage is always equal to one-half the input voltage. The unique combination of a high-performance, micropower operational amplifier and a precision trimmed divider on a single silicon chip results in a precise VO/VI ratio of 0.5 while sinking and sourcing current. It provides a low impedance output with 20mA of sink and source capability while drawing less than 280µA of supply current. With the addition of an external capacitor (CNR), peak-to-peak noise is reduced while line ripple rejection is improved. Initial output tolerance for a single 5 or 12V system is better than 1% with 3.6% over the full 40V input range. Ripple rejection exceeds 12 bits of accuracy.
1/2 VI virtual ground for analog systems
170µA Typical micropower operation (VI = 5V)
High output-current capability (source - 20mA typical, sink - 20mA typical)
Excellent output regulation
Low impedance output (0.0075R typical)
Green product and no Sb/Br

Show

TLE2426CLP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Supply Voltage (DC)	4.00V (min)
Capacitance Tolerance	±1 %
Input Voltage (DC)	40.0V (max)
Output Voltage	2V ~ 20V
Output Current	20 mA
Supply Current	400 µA
Number of Channels	1 Channel
Number of Positions	3 Position
Input Voltage (Max)	40 V
Output Voltage (Max)	20 V
Output Voltage (Min)	2 V
Output Current (Max)	20 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	4 V
Input Voltage	4V ~ 40V
	Show
Size-Length	4.83 mm
Size-Width	3.43 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 70℃
Temperature Coefficient	±35 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
