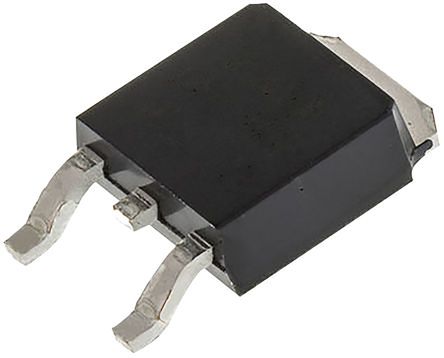

Image is for your reference only,please check specifications for details

TLE4284DV33ATMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC39029635
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON TLE4284DV33ATMA1 Fixed LDO Voltage Regulator, 4.7V to 40V, 1.3V Dropout, 3.3Vout, 1Aout, TO-252-3
Stock Locations:
Availability:
1,304 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.64

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TLE4284DV33ATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	1 A
Number of Positions	3 Position
Quiescent Current	800 µA
voltage rating	1.3 V
Input Voltage (Max)	40 V
Input Voltage (Min)	4.7 V
Output Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	≤40 V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
