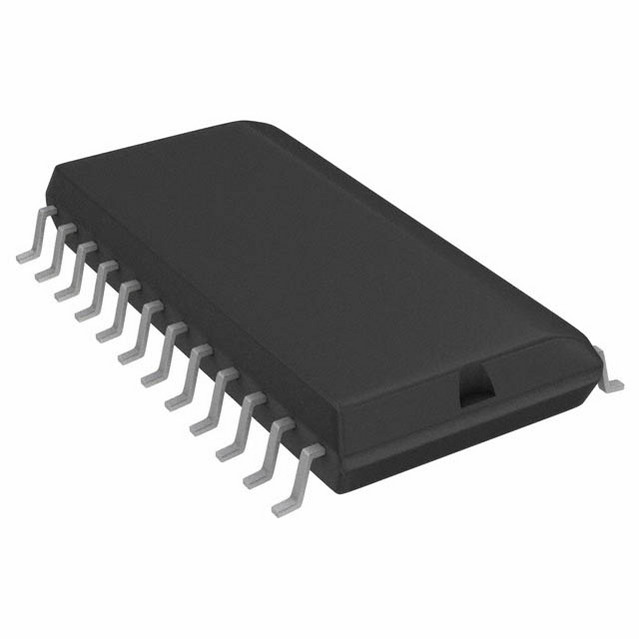

Image is for your reference only,please check specifications for details

TLE4726G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC96127383
Category:
Motor Driver
Package:
PG-DSO-24
Datasheet:
Datasheet 3D Model
Description:
INFINEON TLE4726G Motor Driver, Stepper, 5V to 50V supply, 1A/1 Output, SOIC-24
Stock Locations:
Availability:
4,055 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE4726G is a 2-phase monolithic Stepper Motor Driver IC for driving DC motors and other inductive loads that operate on constant current. The control logic and power output stages for two bipolar windings are integrated on a single chip which permits switched current control of motors with 0.75A per phase at operating voltages up to 50V. The direction and value of current are programmed for each phase via separate control inputs. A common oscillator generates the timing for the current control and turn-ON with phase offset of the two output stages. The two output stages in a full-bridge configuration have integrated, fast free-wheeling diodes and are free of crossover current. The logic is supplied either separately with 5V or taken from the motor supply voltage by way of a series resistor and an integrated Z-diode. The device can be driven directly by a microprocessor with the possibility of all modes from full step through half step to mini step.
Integrated driver, control logic and current control (chopper)
Fast free-wheeling diodes
Low standby-current drain
Full, half, quarter, mini step

Show

TLE4726G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	PG-DSO-24
Supply Voltage (DC)	5.00V (min)
Number of Outputs	1 Output
Output Current	1 A
Number of Positions	24 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5V ~ 50V
Supply Voltage (Max)	50 V
Supply Voltage (Min)	5 V
	Show
Operating Temperature	-25℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
