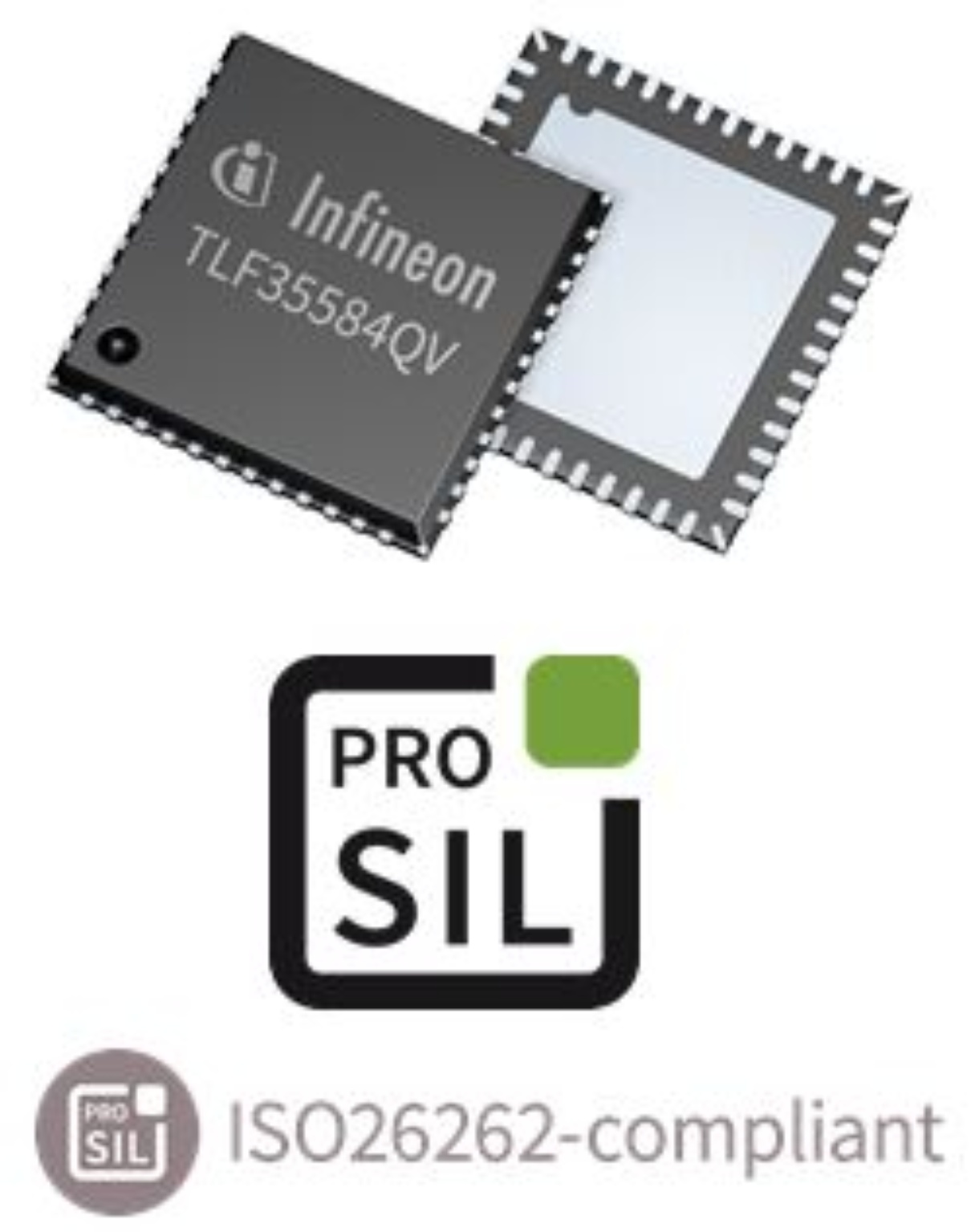

Image is for your reference only,please check specifications for details

TLF35584QVVS2 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC415901503
Package:
VQFN-48
Description:
Switched Voltage Regulator IC€s Part 1
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.36

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The TLF35584 is a multiple output system supply for safety-relevant applications supplying 3.3V-μC, transceivers, and sensors by an efficient and flexible pre-/post-regulator concept over a wide input voltage range. The wide switching frequency range allows optimization in respect of efficiency and usage of small filter components. A dedicated reference-regulator supplies the ADC independent from μC-load steps and acts as tracking-source for the 2 independent sensor-supplies. The flexible state machine, wake-up concept including timer, and the stand-by-regulator favors the usage in numerous applications.
Multiple safety features enable easy realization of ASIL-D together with various Microcontrollers (μCs). The TLF35584 is coming in small, thermally enhanced VQFN-48 (QV-version) capable for automated optical inspection.
**Functional Safety**:
The device is PRO-SIL™ ISO26262-compliant and fulfils the properties required by the ISO26262 (Automotive Safety) Standard (for more info visit www.infineon.com/PRO-SIL).
Required safety integrity functions to reach ASIL-D efficiently on system level are already implemented: UV/OV-monitoring of all rails with independent reference, detecting dependent failures by flexible watchdog-concept, monitoring of μC’s safety management unit, and a safe state controller providing secondary safety paths. A built-in self-test is ensuring the proper function of the relevant safety features. All features are perfectly aligned to the Infineon’s AURIX™-requirements, but are extended to support other μCs as well. All safety-relevant configurations are protected and can only be changed by special, successfully performed unlock/lock-sequence.
Furthermore PRO-SIL™ ISO26262-compliant product development follows a product specific safety plan defined by Infineon. The product development follows the Infineon V – model based development lifecycle which encompasses all ISO26262 required activities and work products related to the product scope. Product relevant safety requirements and required metrics are captured and verified through the development of the product, this includes the product safety concept and ultimately a product safety case which provides the argumentation and evidence showing achievement of the defined safety requirements and process compliance, including all essential supporting processes.
An independent functional safety management organization supports the ISO26262 conform safety lifecycle. For ISO26262-compliant products a Safety Manual and a Safety Analysis Summary Report are availablein addition to Infineon standard documentation.
Moreover Infineon offers expert support for system integrators to achieve the required ASIL on system level. Infineon’s activities result in a simplified integration in safety-related applications.
*NDA required
### Summary of Features:
**Pre-/post-regulator concept: boost and buck/LDOs and trackers for**
μC (main, ADC/reference, StBy)
Transceivers
Sensors
**Integration of functional safety (features supporting ASIL-D)**
UV/OV-monitoring
Flexible watchdogs
Error-monitoring
Safe state controller with 2 outputs
BIST
### Benefits:
Efficiency and flexibility
Enables ASIL-D on system level
Easy ISO26262 implementation by full documentation set
### Target Applications:
**Powertrain**
Engine Management
Transmission
Transfer Case
Integrated Starter Generator
**xEV**
Battery Management
Inverter
DCDC
Charger
**Chassis/Safety**
Electrical Power Steering
Electr. Steering Column Lock
Braking, Electr. Parking Brake
Active Suspension
Chassis Control
Domain Control
ADAS Domain Control
**Application Diagram**
**Additional products**
Sales Name | Package | µC-main-voltage
---|---|---
TLF35584QVVS1
|
PG-VQFN-48
|
5.0V
TLF35584QVVS2
|
PG-VQFN-48
|
3.3V
TLF35584QKVS1
|
PG-LQFP-64
|
5.0V
TLF35584QKVS2
|
PG-LQFP-64
|
3.3V

Show

TLF35584QVVS2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	VQFN-48
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS-conform
Lead-Free Status	Lead Free
ECCN Code	EAR99
