Description
- Telephone Use Equipment Programmable Controllers AC / DC−Input Module Telecommunication

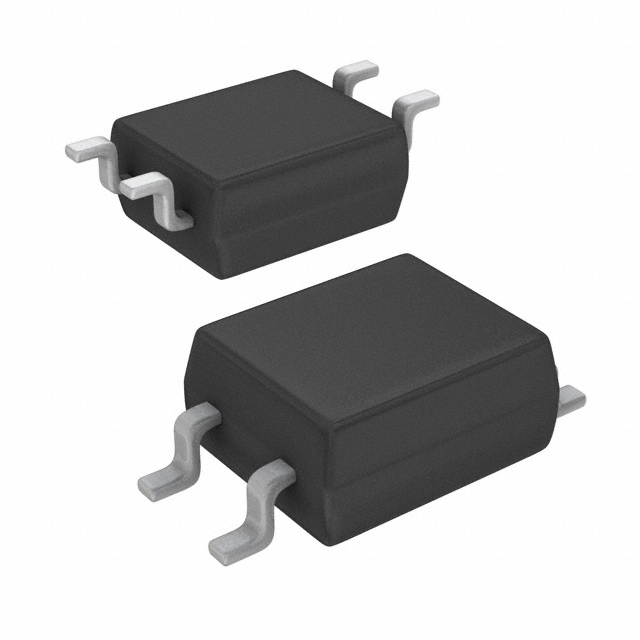

- The TOSHIBA mini flat coupler TLP180 is a small outline coupler, suitable for surface mount assembly. TLP180 consist of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.
- • Collector-emitter voltage: 80 V (min)
- • Current transfer ratio: 50% (min)
- Rank GB: 100% (min)
- • Isolation voltage: 3750 Vrms (min)
- • UL recognized: UL1577, file No. E67349
- • BSI approved: BS EN60065:2002, certificate no.8285
- BS EN60950-1:2002, certificate no.8286
TLP180 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | MFSOP-6 |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.3 V |
| Power Dissipation | 200 mW |
| Isolation Voltage | 3750 Vrms |
| Forward Current | 50 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Size-Length | 3.6 mm |
| Size-Width | 4.4 mm |
| Size-Height | 2.5 mm |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
