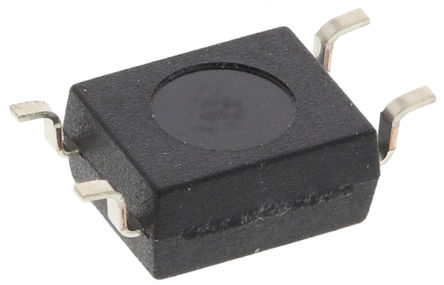

- TLP2301 - Toshiba Corporation
-
Manufacturer:Toshiba Corporation
-
ManyChip's Part#:MC49942900
-
Category:Optocouplers/Optoisolators
-
Package:SOP-6
-
Datasheet:Datasheet 3D Model
-
Description:TOSHIBA TLP2301 – транзисторный оптоэлемент для вывода сигнала, одноканальный, формата SOP, 4 контакта, пропускная способность 50 мА, напряжение до 3,75 кВ, степень защиты 50%.
-
Stock Locations:
-
Availability:283 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.3
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
TLP2301 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-6 |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.25 V |
| Isolation Voltage | 3.75 kV |
| Output Voltage (Max) | 40 V |
| Input Current (Min) | 50 mA |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Show | |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
