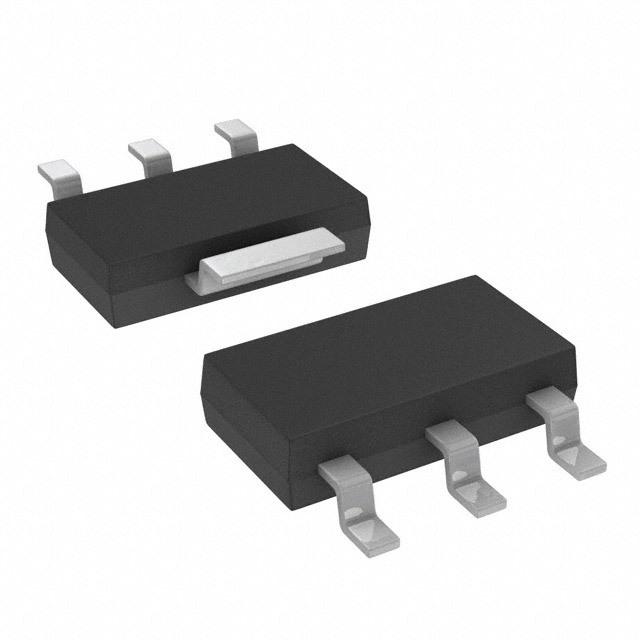

TLV1117CDCYR - TI
Manufacturer:
TI
ManyChip's Part#:
MC8080400
Category:
Voltage Regulator
Package:
SOT-223-4
Datasheet:
Datasheet 3D Model
Description:
Standard Voltage Regulator Single Output LDO, 800mA, Fixed and Adj., Internal Current limit, Thermal Overload Protection LDO Regulator Pos 1.25V to 13.7V 0.8A 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
998 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.53

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV1117CDCYR is a positive low-dropout Voltage Regulator designed to provide up to 800mA of output current. All internal circuitry is designed to operate down to 1V input-to-output differential. Dropout voltage is specified at a maximum of 1.3V at 800mA, decreasing at lower load currents. The device is designed to be stable with tantalum and aluminum electrolytic output capacitors having an ESR between 0.2 and 10R. Unlike PNP-type regulators, in which up to 10% of the output current is wasted as quiescent current, the quiescent current of the device flows into the load, increasing efficiency. The device is characterized for operation over the virtual junction temperature range of 0 to 125°C.
Specified dropout voltage at multiple current levels
0.2% Maximum line regulation
0.4% Maximum load regulation
Green product and no Sb/Br

Show

TLV1117CDCYR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-223-4
Number of Outputs	1 Output
Input Voltage (DC)	15.0V (max)
Output Voltage	1.25V ~ 13.7V
Output Current	800 mA
Number of Positions	3 Position
Quiescent Current	5 mA
Output Capacitor Type	Tantalum
voltage rating	1.2 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	15 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	13.7 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.8 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	2.5 %
Supply Voltage (Min)	2.7 V
Input Voltage	2.7V ~ 15V
	Show
Size-Height	1.7 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/06/27
