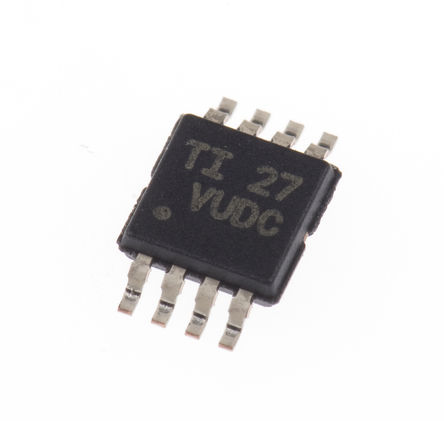

Image is for your reference only,please check specifications for details
- TLV3202AIDGK - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC12199430
-
Category:Comparator, Analog Comparator IC
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Analogue Comparator, Dual, Micropower, 2, 40ns, 2.7V to 5.5V, VSSOP, 8Pins
-
Stock Locations:
-
Availability:279 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.67
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV3202AIDGK is a 2-channel Micropower Comparator with push-pull outputs that offer the ultimate combination of high-speed (40ns) and low-power consumption (40µA) featuring rail-to-rail inputs, low offset voltage (1mV) and large output drive current. The comparator is also very easy to implement in a wide variety of applications where response time is critical. When the output switches, there is a direct path between VCC and ground, causing increased output sinking or sourcing current during the transition. The combination of fast response time and minimal power consumption make TLV3202 excellent comparator for portable, battery-powered applications as well as fast-switching threshold detection such as pulse-width modulation (PWM) output monitors and zero-cross detection.
- Low propagation delay
- Low quiescent current (40µA per channel)
- Input common-mode range extends 200mV beyond either rail
- Low input offset voltage (1mV)
- Push-pull outputs
- Green product and no Sb/Br
- IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
TLV3202AIDGK Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Supply Current | 65.0 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Voltage | 5 mV |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
