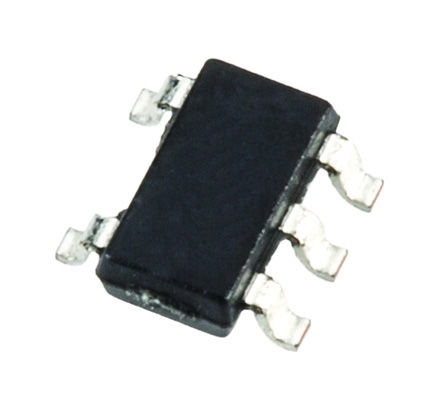

Image is for your reference only,please check specifications for details

TLV70018DDCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC7979233
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO 200mA, Low IQ, Low Dropout Regulator for Portables LDO Regulator Pos 1.8V 0.2A 5Pin TSOT-23 T/R
Stock Locations:
Availability:
1,989 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV70018DDCT is a 1.8V fixed output low-dropout (LDO) Linear Regulator with excellent line and load transient performance. This device is designed for power-sensitive applications. A precision band gap and error amplifier provides overall 2% accuracy. Low output noise, very high power-supply rejection ratio (PSRR) and low-dropout (LDO) voltage make this device ideal for most battery-operated handheld equipment. The device have thermal shutdown and current limit for safety. Furthermore, this device is stable with an effective output capacitance of only 0.1µF. This feature enables the use of capacitors that have higher bias voltages and temperature derating. The device regulate to specified accuracy with no output load.
31µA Low quiescent current
68dB at 1kHz High PSRR
Green product and no Sb/Br

Show

TLV70018DDCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	200 mA
Number of Positions	5 Position
Power Dissipation	0.5 W
Quiescent Current	31 µA
Output Capacitor Type	Ceramic
voltage rating	175 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Accuracy	2 %
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2 V
Input Voltage	2V ~ 5.5V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
