Image is for your reference only,please check specifications for details

TMP03FT9 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC4137593
Category:
Temperature Sensor
Package:

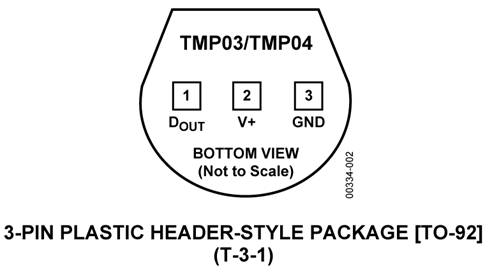

TO-226-3
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES TMP03FT9 Temperature Sensor IC, Digital, ± 3℃, -25℃, 100℃, TO-92, 3Pins
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.86

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Low Cost 3-Pin Package Modulated Serial Digital Output Proportional to Temperature 1.5C Accuracy (typ) from –25C to +100C Specified –40C to +100C, Operation to 150C Power Consumption 6.5 mW Max at 5 V Flexible Open-Collector Output on TMP03 CMOS/TTL-Compatible Output on TMP04 Low Voltage Operation (4.5 V to 7 V) APPL

Show

TMP03FT9 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	5.00 V
Supply Current	1.3 mA
Number of Bits	12 Bit
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±3 ℃
Supply Voltage	4.5V ~ 7V
	Show
Size-Length	5.08 mm
Size-Height	4.85 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
