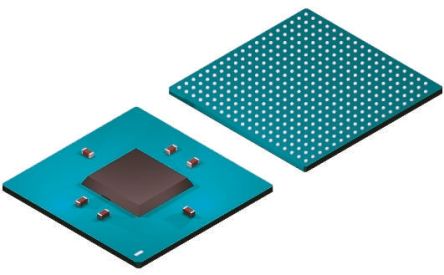

Image is for your reference only,please check specifications for details
- TMS320C6748BZWT4 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC44508610
-
Category:DSP, Digital Signal Processor
-
Package:LFBGA-361
-
Datasheet:Datasheet 3D Model
-
Description:DSP Fixed-Point/Floating-Point 64Bit 456MHz 3648MIPS 361Pin NFBGA
-
Stock Locations:
-
Availability:1,055 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 27.64
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TMS320C6748BZWT4 is a fixed/floating-point Digital Signal Processor provides significantly lower power than other members of the TMS320C6000™ platform of DSPs. The device enables original-equipment manufacturers (OEMs) and original-design manufacturers (ODMs) to quickly bring to market devices with robust operating systems, rich user interfaces and high processor performance through the maximum flexibility of a fully integrated, mixed processor solution. The device DSP core uses a 2-level cache-based architecture. The level 1 program cache (L1P) is a 32kB direct mapped cache and the level 1 data cache is a 32kB 2-way, set-associative cache. The level 2 program cache consists of a 256kB memory space that is shared between program and data space. L2 memory can be configured as mapped memory, cache or combinations of the two. Although the DSP L2 is accessible by other hosts in the system, an additional 128kB of RAM shared memory.
- Dedicated 16-bit time-based counter with period and frequency control
- 6 Single-edge outputs, 6 dual-edge symmetric outputs or 3 dual-edge asymmetric outputs
- Dead-band generation
- PWM Chopping by high-frequency carrier
- High-speed parallel interface to FPGAs and data converters
- Data width on both channels is 8- to 16-bit inclusive
- Single-data rate or dual-data rate transfers
- Supports multiple interfaces with START, ENABLE and WAIT controls
- Two multichannel buffered serial ports (McBSPs)
- One multichannel audio serial port (McASP)
- Dedicated interrupt controller
- Dedicated switched central resource
- Standard power-management mechanism
- Two multimedia card (MMC)/secure digital (SD) card interfaces with secure data I/O (SDIO) interfaces
- Hardware support for modulo loop operation
- Exceptions support for error detection and program redirection
TMS320C6748BZWT4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 361 Pin |
| Case/Package | LFBGA-361 |
| Frequency | 456 MHz |
| Supply Voltage (DC) | 1.25V (min) |
| Number of Positions | 361 Position |
| Clock Speed | 375456 MHz |
| RAM Memory Size | 256 kB |
| Number of Bits | 32 Bit |
| Number of UARTs | 3 UART |
| Number of Inputs and Outputs | 144 Input IO |
| Operating Temperature (Max) | 90 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Number of DACs | 1 DAC |
| Show | |
| Size-Length | 16.1 mm |
| Size-Width | 16.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | 0℃ ~ 90℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
