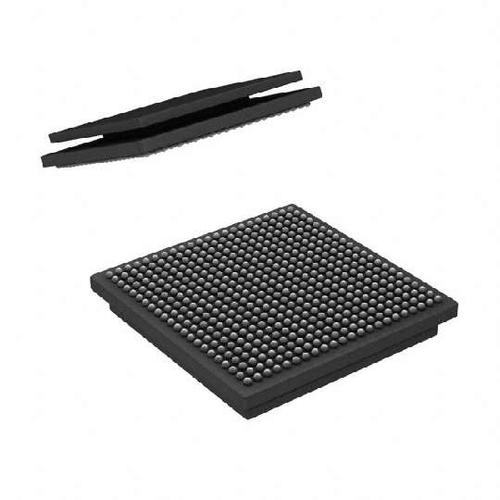

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Simplify digital design with this TMS320DM648ZUTD9 digital signal processor from Texas Instruments. This DSP processor has a minimum operating temperature of -40 °C and a maximum of 90 °C. 900 MHz is its maximum speed. This device is based on the C64x core architecture. Its rom program memory is 64KB. This device has a typical operating supply voltage of 1.2 V. Its minimum operating supply voltage of 1.14 V, while its maximum is 1.26 V. This is a 32 bit processor.

Show

TMS320DM648ZUTD9 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	529 Pin
Case/Package	FCBGA-529
Frequency	900 MHz
Clock Speed	900 MHz
RAM Memory Size	576 KB
Operating Temperature (Max)	90 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 90℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	3A991.a.2
