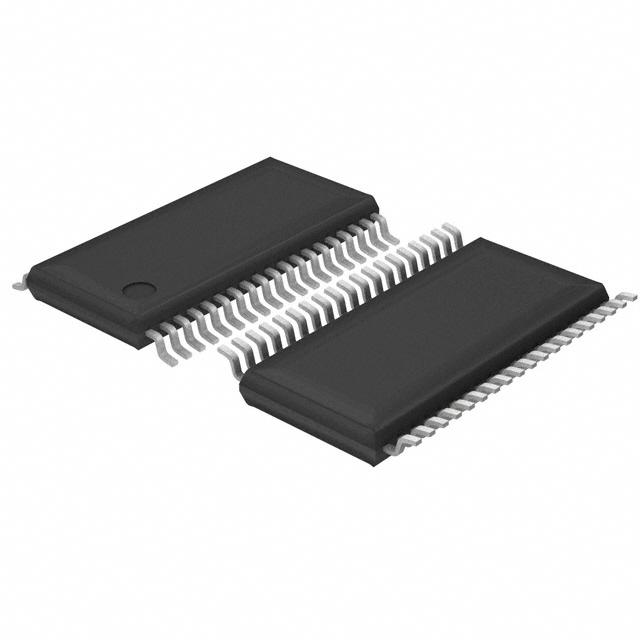

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The F2802x Piccolo™ family of microcontrollers provides the power of the C28x core coupled with highly
- integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x based code, and also provides a high level of analog integration.
- Features
- • High-Efficiency 32-Bit CPU (TMS320C28x)
- – 60 MHz (16.67-ns Cycle Time)
- – 50 MHz (20-ns Cycle Time)
- – 40 MHz (25-ns Cycle Time)
- – 16 × 16 and 32 × 32 MAC Operations
- – 16 × 16 Dual MAC
- – Harvard Bus Architecture
- – Atomic Operations
- – Fast Interrupt Response and Processing
- – Unified Memory Programming Model
- – Code-Efficient (in C/C++ and Assembly)
- • Endianness: Little Endian
- • Low Cost for Both Device and System:
- – Single 3.3-V Supply
- – No Power Sequencing Requirement
- – Integrated Power-on and Brown-out Resets
- – Small Packaging, as Low as 38-Pin Available
- – Low Power
- – No Analog Support Pins
- • Clocking:
- – Two Internal Zero-Pin Oscillators
- – On-Chip Crystal Oscillator and External Clock Input
- – Watchdog Timer Module
- – Missing Clock Detection Circuitry
- • Up to 22 Individually Programmable, Multiplexed GPIO Pins With Input Filtering
- • Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
- • Three 32-Bit CPU Timers
- • Independent 16-Bit Timer in Each Enhanced Pulse Width Modulator (ePWM)
- • On-Chip Memory
- – Flash, SARAM, OTP, Boot ROM Available
- • Code-Security Module
- • 128-Bit Security Key and Lock
- – Protects Secure Memory Blocks
- – Prevents Firmware Reverse Engineering
- • Serial Port Peripherals
- – One Serial Communications Interface (SCI) Universal Asynchronous Receiver/Transmitter (UART) Module
- – One Serial Peripheral Interface (SPI) Module
- – One Inter-Integrated-Circuit (I2C) Module
- • Enhanced Control Peripherals
- – ePWM
- – High-Resolution PWM (HRPWM)
- – Enhanced Capture (eCAP) Module
- – Analog-to-Digital Converter (ADC)
- – On-Chip Temperature Sensor
- – Comparator
- • Advanced Emulation Features
- – Analysis and Breakpoint Functions
- – Real-Time Debug Through Hardware
- • 2802x, 2802xx Packages
- – 38-Pin DA Thin Shrink Small-Outline Package (TSSOP)
- – 48-Pin PT Low-Profile Quad Flatpack (LQFP)
- Applications
- • White Goods
- • Switch Mode Power Supplies (SMPSs)
- • DC-DC Multiple-Output Power Supplies
- • Solar Micro Inverters and Converters
- • LED Lighting
- • Power Factor Correction
- • Sewing and Textile Machines
- • eBikes
TMS320F28022DAQ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 38 Pin |
| Case/Package | TSSOP-38 |
| Frequency | 50 MHz |
| Clock Speed | 50.0 MHz |
| RAM Memory Size | 12 KB |
| FLASH Memory Size | 32768 B |
| Number of UARTs | 1 UART |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 1.995 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
