Description

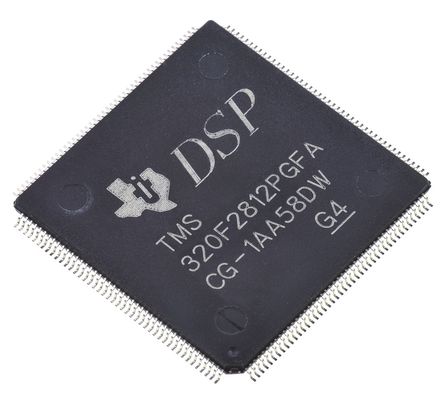

The TMS320F2812PGFA is a 32-bit Digital Signal Controller with flash for demanding control applications. The F2812 contains 128K x 16 of embedded flash memory, segregated into four 8K x 16 sectors and six 16K x 16 sectors. The F2810 has 64K x 16 of embedded flash, segregated into two 8K x 16 sectors and three 16K x 16 sectors. All three devices also contain a single 1K x 16 of OTP memory at address range 0x3D 7800-0x3D 7BFF. The user can individually erase, program and validate a flash sector while leaving other sectors untouched. However, it is not possible to use one sector of the flash or the OTP to execute flash algorithms that erase/program other sectors. Special memory pipelining is provided to enable the flash module to achieve higher performance. The flash/OTP is mapped to both program and data space; therefore, it can be used to execute code or store data information.
High-performance static CMOS technology
On-chip memory
Programmable read/write strobe timing
Dynamic PLL ratio changes supported
Three external interrupts
Peripheral Interrupt Expansion (PIE) block that supports 45 peripheral interrupts
128-bit Security key/lock
Three 32-bit CPU timers
IDLE, STANDBY, HALT modes supported
Disable individual peripheral clocks
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

TMS320F2812PGFA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	176 Pin
Case/Package	LQFP-176
Frequency	150 MHz
Supply Voltage (DC)	1.71V (min)
Operating Voltage	1.81V ~ 2V
Number of Positions	176 Position
Clock Speed	150 MHz
RAM Memory Size	36 KB
FLASH Memory Size	256 KB
Number of I/O Pins	56 IO
Number of UARTs	2 UART
Number of ADCs	1 ADC
Number of Inputs and Outputs	56 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.71V ~ 1.89V
Supply Voltage (Max)	1.89 V
Supply Voltage (Min)	1.71 V
	Show
Size-Length	24 mm
Size-Width	24 mm
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
HK STC License	NLR
