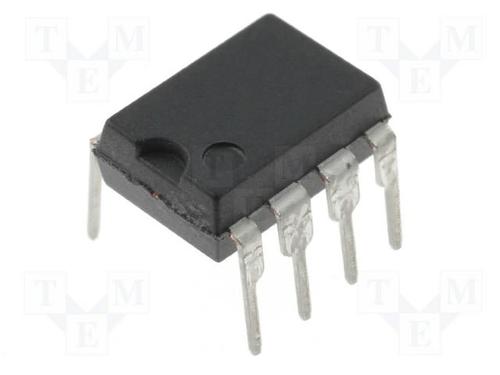

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TOP224PN is a 30W second generation 3-terminal Off-Line PWM Switch provides several enhancements over the first generation TOPSwitch family. Many significant circuit enhancements that reduce the sensitivity to board layout and line transients now make the design even easier. TOPSwitch incorporates all functions necessary for a switched mode control system into a three terminal monolithic IC are power MOSFET, PWM controller, high voltage start up circuit, loop compensation and fault protection circuitry.
Very low AC/DC losses up to 90% efficiency
Built-in auto-restart and current limiting
Latching thermal shutdown for system level protection
Works with primary or opto feedback
Stable in discontinuous or continuous conduction mode
Source connected tab for low EMI
Circuit simplicity and design tools reduce time to market

Show

TOP224PN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	100 kHz
Supply Voltage (DC)	85.0V (min)
Power Rating	20 W
Number of Outputs	1 Output
Input Voltage (DC)	265 V
Output Voltage	700 V
Output Current	150 mA
Breakdown Voltage	700 V
Supply Current	1.20 mA
Number of Positions	8 Position
Output Power	20 W
Switching Frequency	100 kHz
Duty Cycle	67 %
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Maximum Duty Cycle	70 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	36 V
Supply Voltage (Min)	85 V
Input Voltage	265 V
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
