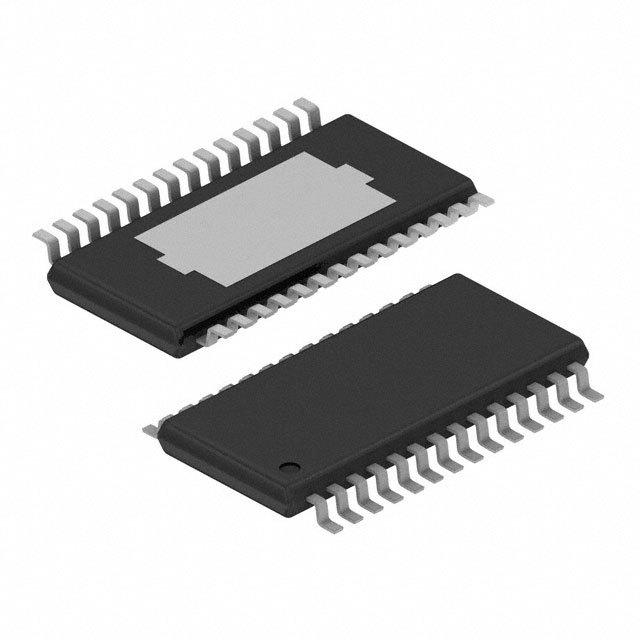

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TPA3111D1 device is a 10-W, efficient, Class-D audio power amplifier for driving a bridge tied speaker. Advanced EMI suppression technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard speaker protection system includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter lets the user to set a virtual voltage rail lower than the chip supply to limit the current through the speaker. The DC Detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs.
Features
• 10-W into an 8-Ω Load at 10% THD+N From a 12-V Supply
• 7-W into an 4-Ω Load at 10% THD+N From a 8-V Supply
• 94% Efficient Class-D Operation into 8-Ω Load Eliminates Need for Heat Sinks
• Wide Supply Voltage Range Allows Operation from 8 to 26 V
• Filter-Free Operation
• SpeakerGuard™ Speaker Protection Includes Adjustable Power Limiter Plus DC Protection
• Flow-Through Pinout Facilitates Easy Board Layout
• Robust Pin-to-Pin Short-Circuit Protection and Thermal Protection With Auto-Recovery Option
• Excellent THD+N and Pop-Free Performance
• Four Selectable, Fixed Gain Settings
• Differential Inputs
Applications
• Televisions
• Monitors and Laptops
• Consumer Audio Equipment

Show

TPA3111D1PWPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	28 Position
Power Dissipation	4.98 W
Output Power	10 W
Gain	37 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 26V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
