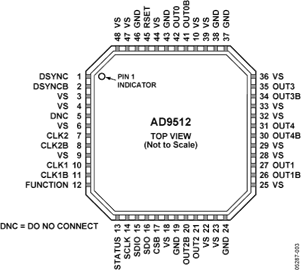

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9512BCPZ is a 5-output Clock Distribution IC provides multi-output clock distribution in a design that emphasizes low jitter and low phase noise to maximize data converter performance. Other applications with demanding phase noise and jitter requirements can also benefit from this part. There are five independent clock outputs. Three outputs are LVPECL (1.2GHz) and two are selectable as either LVDS (800MHz) or CMOS (250MHz) levels. Each output has a programmable divider that may be bypassed or set to divide by any integer up to 32. The phase of one clock output relative to another clock output may be varied by means of a divider phase select function that serves as a coarse timing adjustment. One of the LVDS/CMOS outputs features a programmable delay element with a range of up to 10ns of delay. This fine tuning delay block has 5-bit resolution, giving 32 possible delays from which to choose.
Phase select for output-to-output coarse delay adjust
Serial control port
Two 1.6GHz, differential clock inputs
5 Programmable dividers, 1 to 32, all integers
3 Independent 1.2GHz LVPECL outputs
Fine delay adjust on 1 LVDS/CMOS output
ESD sensitive device. Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
