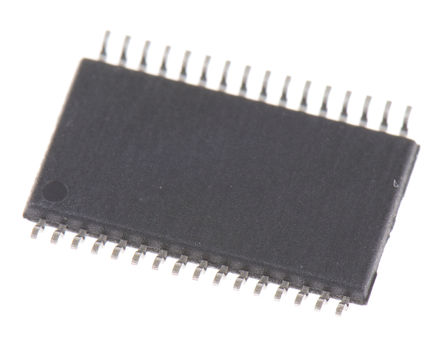

Image is for your reference only,please check specifications for details
- TPA3116D2DAD - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1070777
-
Category:Audio Amplifier IC
-
Package:HTSSOP-32
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TPA3116D2DAD Audio Power Amplifier, D, 2Channel, 50W, 5V to 26V, HTSSOP, 32Pins
-
Stock Locations:
-
Availability:226 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.28
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPA3116D2DAD is a 50W Stereo (BTL) Class-D Audio Amp with SpeakerGuard™ for driving speakers up to 100W/2R in mono. The high power TPA3116D2 does 2 x 50W/4R with a small heat-sink attached to its top side PowerPAD. All three devices share the same footprint enabling a single PCB to be used across different power levels. The TPA3116D2DAD advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices. The TPA3116D2DAD devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, under-voltage and DC protection.
- 2 x 50W into a 4R BTL load at 21V
- Efficient class-D operation
- >90% Power efficiency combined with low idle loss greatly reduces heat sink size
- Advanced modulation schemes
- AM avoidance
- Master and slave synchronization
- Up to 1.2MHz switching frequency
- Feedback power-stage architecture with high PSRR reduces PSU requirements
- Programmable power limit
- Differential and single-ended inputs
- Stereo and mono mode with single-filter mono configuration
- Single power supply reduces component count
- Integrated self-protection - overvoltage, under-voltage, over-temperature, DC-detect, short-circuit
- Green product and no Sb/Br
- IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
TPA3116D2DAD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | HTSSOP-32 |
| Operating Voltage | 4.5V ~ 26V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 32 Position |
| Output Power | 50 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5V ~ 26V |
| Show | |
| Size-Length | 11.1 mm |
| Size-Width | 6.2 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
