Description

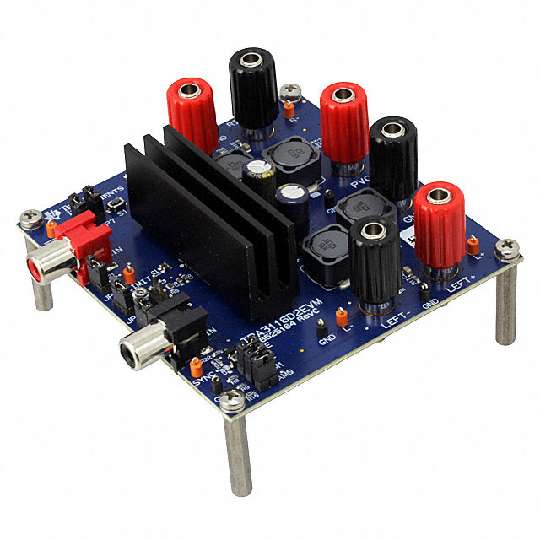

The TPA3116D2EVM is an evaluation module for TPA3116D2, a single 50W, Class-D, stereo audio power amplifier, complete with a small number of external components mounted on a circuit board that can be used to directly drive a speaker with an external analog audio source as the input. The EVM"s default output filter configuration supports LC filter operation, but can easily be configured to support filter free operation or micro inductors. The evaluation module can also be configured as a 100W, Class-D mono audio power amplifier. Designers can quickly evaluate the sound quality and verify specifications in their application with the evaluation module.
Efficient Class-D operation
Support for filter free operation
SpeakerGuardTM speaker protection circuitry
Four selectable, fixed gain settings
Wide operating voltage from 4.5V to 26V
Wide switching rates from 400KHz to 1.2MHz
Switching rate can be synched to an external clock source
AM avoidance
Thermal and short circuit protection with auto recovery feature
Failure to observe ESD handling procedures can result in damage to EVM components.

Show

TPA3116D2EVM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Supply Current	8 A
Supply Voltage	6V ~ 26V
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
