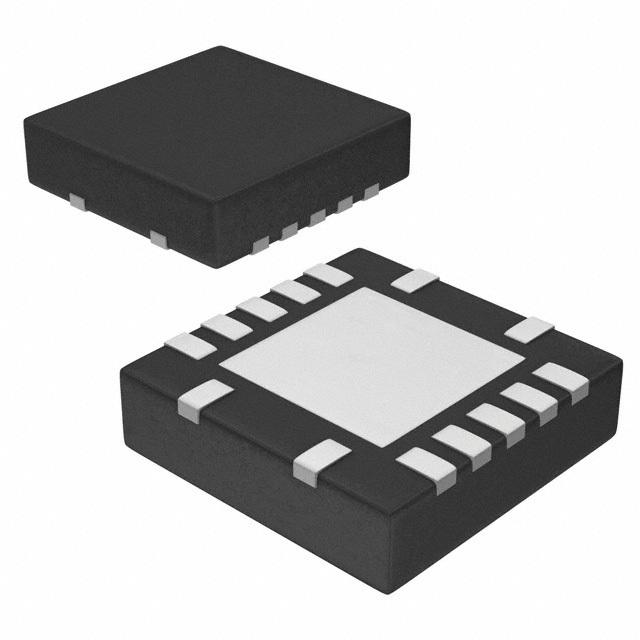

Image is for your reference only,please check specifications for details

TPA6120A2RGYT - TI
Manufacturer:
TI
ManyChip's Part#:
MC6114303
Category:
Audio Amplifier IC
Package:
VQFN-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPA6120A2RGYT Audio Power Amplifier, AB, 2Channel, 1.5W, 10V to 30V, ± 5V to ± 15V, VQFN, 14Pins
Stock Locations:
Availability:
317 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.72

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA6120A2RGYT is a high fidelity Headphone Amplifier for use with headphone drivers. The TPA6120A2 replaces a costly discrete design and allows music, not the amplifier, to be heard. The TPA6120A2"s current-feedback AB amplifier architecture delivers high bandwidth, extremely low noise and up to 128dB of dynamic range. Three key features make current-feedback amplifier outstanding for audio. The first feature is the high slew rate that prevents odd order distortion anomalies. The second feature is current-on-demand at the output that enables the amplifier to respond quickly and linearly when necessary without risk of output distortion. When large amounts of output power are suddenly needed, the amplifier can respond extremely quickly without raising the noise floor of the system and degrading the signal-to-noise ratio. The third feature is the gain-independent frequency response that allows the full bandwidth of the amplifier to be used over a wide range of gain settings.
Current-feedback architecture
Can be configured for single ended or differential inputs
Independent power supplies for low crosstalk
THD of 112.5dB
1300V/µs Slew rate
Green product and no Sb/Br

Show

TPA6120A2RGYT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	VQFN-14
Output Current	700 mA
Supply Current	26 mA
Number of Channels	2 Channel
Number of Positions	14 Position
Power Dissipation	2800 mW
Common Mode Rejection Ratio	100 dB
Output Power	1.5 W
Input Offset Voltage	5 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2800 mW
Supply Voltage (Max)	30 V
Supply Voltage (Min)	10 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
