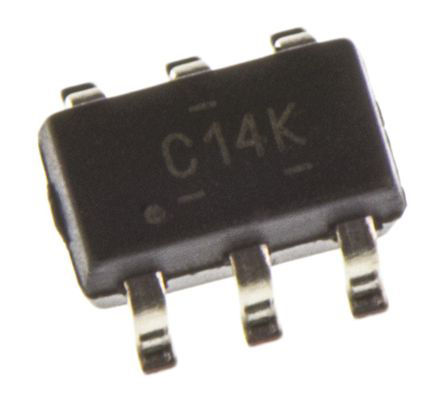

Image is for your reference only,please check specifications for details
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPD3S014DBVR is a current-limit Switch and D+/D- ESD Protection for USB Host Ports for USB interfaces. The TPD3S0x4 device is intended for applications such as USB where heavy capacitive loads and short-circuits are likely to be encountered; it provide short-circuit protection and over-current protection. The fast overload response eases the burden on the main 5V power supply by quickly regulating the power when the output is shorted. The rise and fall times for the current limit switch are controlled to minimize current surges when turning the device on and off. It allows 0.5 and 1.5 of continuous current, respectively. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its easy-to-route DBV package, allows this device to provide great circuit protection for USB interfaces in applications.
- Integrated output discharge
- Reverse current blocking
- Short-circuit protection
- Over-temperature protection with auto-restart
- Built-in soft-start
- Product regulatory compliance
- 2µs Fast overcurrent response
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPD3S014DBVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-23-6 |
| Supply Voltage (DC) | 4.50V (min) |
| Capacitance | 1.40 pF |
| Number of Outputs | 1 Output |
| Output Current | 500 mA |
| Number of Positions | 6 Position |
| Rise Time | 640 µs |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 4.5 V |
| Number of Inputs | 2 Input |
| Fall Time | 400 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 4.5V ~ 5.5V |
| Show | |
| Size-Length | 3.05 mm |
| Size-Width | 1.75 mm |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
