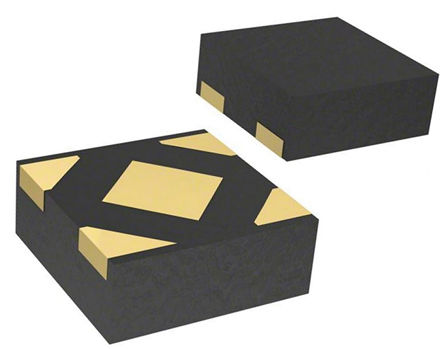

Image is for your reference only,please check specifications for details

TPD4E101DPWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC11998714
Category:
TVS Diode
Package:
4-X2SON
Datasheet:
Datasheet 3D Model
Description:
4Channel ESD Protection With +/-15kV Contact ESD 4-X2SON -40℃ to 125℃
Stock Locations:
Availability:
485 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD4E101 device is a four-channel electrostatic discharge (ESD) transient voltage suppression (TVS) diode array in an ultra small 0.8-mm × 0.8-mm package. This TVS protection device offers ±15-kV contact ESD, ±15-kV IEC air-gap protection, and has four back-to-back TVS diodes for bipolar or bidirectional signal support. The 4.8-pF typical line capacitance of this ESD protection diode array is suitable for a wide range of applications supporting data rates up to 700 Mbps. The DPW package is convenient for component placement in space-constrained applications and the 0.48-mm pitch helps save on PCB manufacturing costs.
Typical applications of this ESD protection device are circuit protection for SIM cards, audio lines (microphones, earphones, and speakerphones), SD interfaces and pushbuttons. This ESD clamp is good for providing protection in end-equipment like cell phones, portable media players, wearables, set-top boxes, and eBooks.

Show

TPD4E101DPWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	4-X2SON
Operating Voltage	5.5 V
Capacitance	7 pF
Breakdown Voltage	6 V
Number of Channels	4 Channel
Number of Positions	4 Position
Clamping Voltage	13 V
Test Current	10 mA
Peak Pulse Power	40 W
Min Breakdown Voltage	6 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	0.85 mm
Size-Width	0.85 mm
Size-Height	0.35 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
