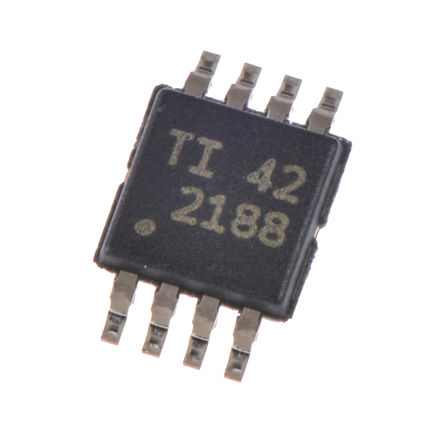

Image is for your reference only,please check specifications for details
- OPA2188AIDGKT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC29478889
-
Category:Operational Amplifier, OP Amp IC
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS OPA2188AIDGKT Операционный усилитель, сдвоенный, 2 усилителя, 2 МГц, 0.8 В/мкс, ±2 В до ±18 В, MSOP, 8 выводов
-
Stock Locations:
-
Availability:18 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.4
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- OPA2188AIDGKT — это малошумящий операционный усилитель с выходом типа «rail-to-rail». Операционный усилитель использует фирменную технологию автоматической компенсации смещения Texas Instruments, обеспечивающую низкое напряжение смещения (максимум 25 мкВ) и почти нулевой дрейф во времени и при изменении температуры. Этот миниатюрный, высокоточный усилитель с низким током покоя обладает высоким входным сопротивлением и размахом выходного сигнала «rail-to-rail» в пределах 15 мВ от шин питания. Диапазон синфазного входного напряжения включает отрицательную шину питания.
- Входы с фильтрацией радиопомех
- Превосходная точность по постоянному току: 142 дБ PSRR и 146 дБ CMRR
- Шум в диапазоне от 0,1 до 10 Гц — 0,25 мкВп-п
- Нулевой дрейф: 0,03 мкВ/°C
- Низкий уровень шума: 8,8 нВ/√Гц
- Коэффициент усиления без обратной связи: 136 дБ
- Максимальный ток покоя: 475 мкА
- Экологичный продукт, не содержит сурьмы и брома
OPA2188AIDGKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Supply Current | 415 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 120 dB |
| Input Offset Drift | 30.0 nV/K |
| Bandwidth | 2 MHz |
| Slew Rate | 800 mV/μs |
| Gain Bandwidth Product | 2 MHz |
| Input Offset Voltage | 6 μV |
| Input Bias Current | 160 pA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 2 MHz |
| Minimum CMRR Range | 120 dB |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
