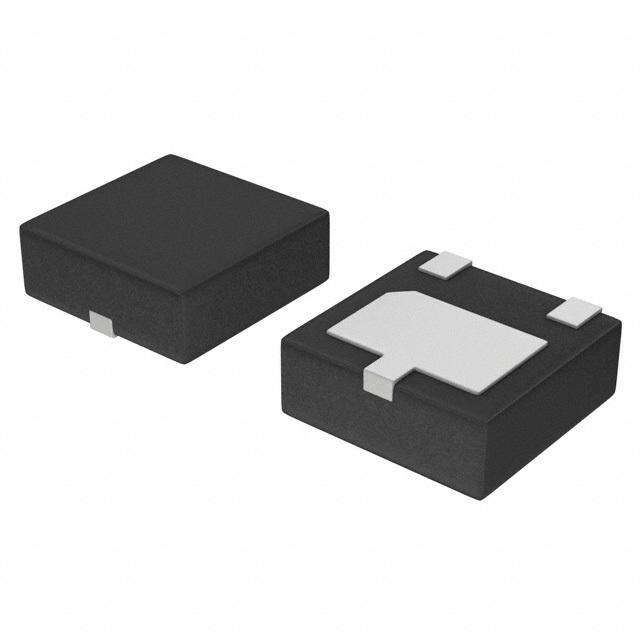

NSS20500UW3T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	WDFN-3
Frequency	100 MHz
Halogen Free Status	Halogen Free
Polarity	PNP
Power Dissipation	3 W
Gain Bandwidth Product	100 MHz
Breakdown Voltage (Collector to Emitter)	20 V
Continuous Collector Current	5A
hFE Min	200 @2A, 2V
Input Power (Max)	875 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3000 mW
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
