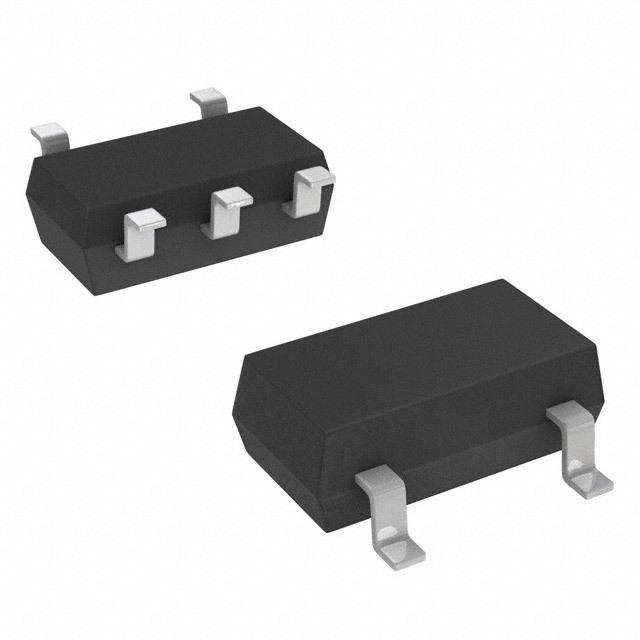

Image is for your reference only,please check specifications for details

TSV621ICT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC14636963
Category:
Operational Amplifier, OP Amp IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TSV621ICT Operational Amplifier, Single, 1 Amplifier, 420kHz, 0.14V/µs, 1.5V to 5.5V, SC-70, 5Pins
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSV621ICT is a single CMOS Operational Amplifier with rail-to-rail input/output. The single operational amplifier features low voltage and low power operation. With a very low input bias current and low offset voltage, the TSV621 is ideal for applications that require precision. The device can operate at a power supply ranging from 1.5 to 5.5V. This product features an excellent speed/power consumption ratio, offering a 420kHz gain bandwidth while consuming only 29µA at a 5V supply voltage. This operational amplifier is unity gain stable for capacitive loads up to 100pF. The device is internally adjusted to provide very narrow dispersion of AC and DC parameters, especially power consumption, product gain bandwidth and slew rate.
Unity gain stability
800µV Maximum low input offset voltage
29µA Typical low power consumption
1pA Typical low input bias current
4kV HBM
2µV/°C Input offset voltage drift

Show

TSV621ICT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Output Current	74mA @5V
Supply Current	29 µA
Number of Circuits	1 Circuit
Number of Positions	5 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	420 kHz
Slew Rate	140 mV/μs
Gain Bandwidth Product	420 kHz
Input Offset Voltage	4 mV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.42 MHz
Minimum CMRR Range	60 dB
Supply Voltage	1.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
