- The TPDxE05U06 is a family of unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. Each device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard. The TPDxE05U06s ultra-low loading capacitance makes it ideal for protecting any high-speed signal pins.
- Typical applications for TPDxE05U06 includes high speed signal lines in HDMI 1.4_b_, HDMI 2.0, USB 3.0, MHL, LVDS, DisplayPort, PCI-Express®, eSata, and V-by-One® HS.

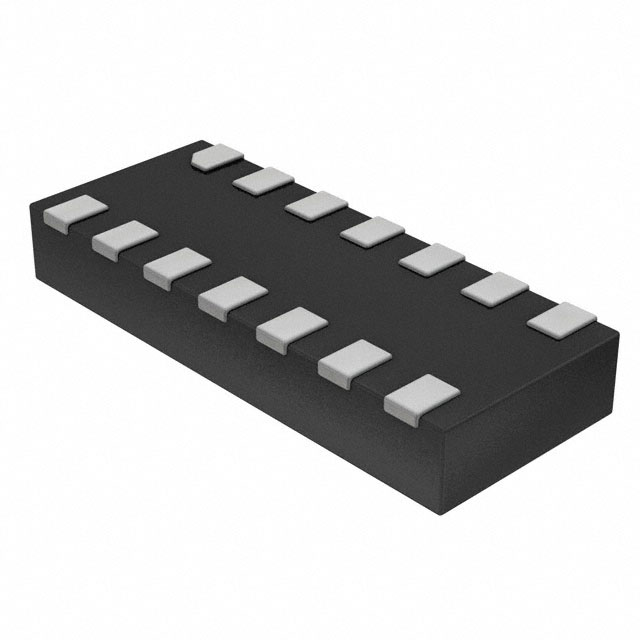

TPD6E05U06RVZR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | UFDFN-14 |
| Capacitance | 0.47 pF |
| Number of Circuits | 6 Circuit |
| Number of Channels | 6 Channel |
| Clamping Voltage | 14 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 8.5 V |
| Peak Pulse Power | 40 W |
| Min Breakdown Voltage | 6 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
