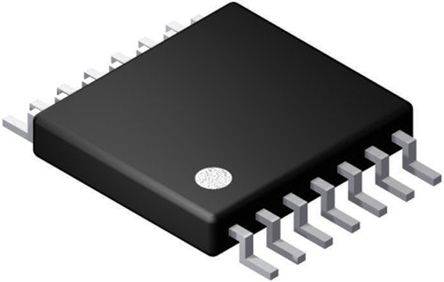

TPS2151IPWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC46289138
Category:
Voltage Regulator
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS2151IPWP. LDO Voltage Regulator, Adjustable, 2.7V to 5.5V in, 180mV drop, 900mV to 3.3V/250mA out, HTSSOP-14
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS2151IPWP is an Adjustable LDO Plus Switch with dual current limit for high power USB peripherals. It is USB 1.0 and 2.0 Specification-compatible IC containing a dual-current-limiting power switch and an adjustable low dropout regulator (LDO). Both the switch and LDO limit inrush current by controlling the turn-ON slew rate. The unique dual-current-limiting feature of the switch allows USB peripherals to utilize high-value capacitance at the output of the switch, while keeping the inrush current low. During turn-ON, the switch limits the current delivered to the capacitive load to less than 100mA. When the output voltage from the switch reaches about 93% of the input voltage, the switch power good output goes high and the switch current limit increases to 800mA minimum, at which point higher current loads can be turned-ON. The higher current limit provides short circuit protection while allowing the peripheral to draw maximum current from the USB bus.
Complete power management solution for USB high-power peripherals
Undervoltage lockout and power good for LDO and switch
CMOS and TTL-compatible enable inputs
5µA Typical standby supply current
Green product and no Sb/Br

Show

TPS2151IPWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Supply Voltage (DC)	5.50V (max)
Number of Outputs	2 Output
Input Voltage (DC)	5.50 V
Output Voltage	≤3.30 V
Output Current	250 mA
Supply Current	85 µA
Number of Positions	14 Position
Power Dissipation	2.266 W
voltage rating	180 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	3.3 V
Output Voltage (Min)	900 mV
Output Current (Max)	150 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.1V ~ 5.5V
Supply Voltage (Min)	4.1 V
Input Voltage	5.5 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
