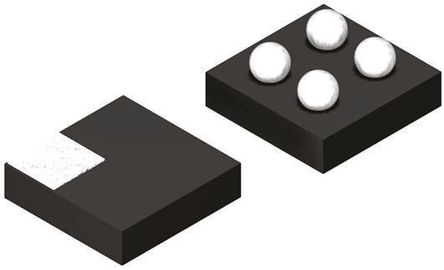

TPS22913BYZVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC21076928
Category:
Power Distribution
Package:
XFBGA-4
Datasheet:
Datasheet 3D Model
Description:
5.5V, 2A, 61m Load Switch with Quick Output Discharge and everse Current Protection 4-DSBGA -40℃ to 85℃
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS22913BYZVT is a small low rON Load Switch with controlled turn-on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 to 5.5V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage GPIO control signals. The TPS22913B/C device provides reverse current protection in ON and OFF states. An internal reverse voltage comparator disables the power-switch when the output voltage (VOUT) is driven higher than the input voltage (VIN), by VRCP, to quickly (10µs typical) stop the flow of current towards the input side of the switch. Reverse current protection is always active, even when the power-switch is disabled. Additionally, under-voltage lockout (UVLO) protection turns the switch off if the input voltage is too low. The TPS22913B/C contains a 150R on-chip load resistor for quick output discharge when the switch is turned off.
2A Maximum continuous switch current
Low threshold control input
Controlled slew-rate
Under-voltage lock out
Full-time reverse current protection
Quick output discharge transistor (TPS22913B/C Devices)

Show

TPS22913BYZVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	XFBGA-4
Number of Outputs	1 Output
Input Voltage (DC)	5.50 V
Output Current	2 A
Number of Channels	1 Channel
Number of Positions	4 Position
Quiescent Current	2.00 µA
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.4 V
Input Voltage	5.5 V
	Show
Size-Length	0.92 mm
Size-Width	0.918 mm
Size-Height	0.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
