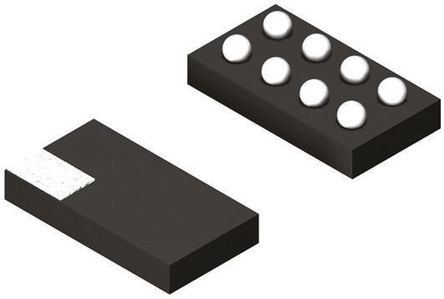

TPS22920YZPR - TI
Manufacturer:
TI
ManyChip's Part#:
MC7200875
Category:
Power Distribution
Package:
XFBGA-8
Datasheet:
Datasheet 3D Model
Description:
3.6V, 4A, 5.3mΩ Load Switch with Quick Output Discharge 8-DSBGA -40℃ to 85℃
Stock Locations:
Availability:
9,843 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.72

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS22920YZPR is a small space-saving Load Switch with controlled turn-on to reduce inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.75 to 3.6V and switch currents up to 4A. An integrated charge pump biases the NMOS switch in order to achieve a minimum switch ON resistance (rON). The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22920x has a 1250R on-chip resistor for quick output discharge when the switch is turned off which insures that the output is not left floating. The TPS22920x has an internally controlled rise time in order to reduce inrush current.
4A Maximum continuous switch current
5.5µA Maximum shutdown current
Low threshold control input
Controlled slew-rate to avoid inrush current
Quick output discharge resistor

Show

TPS22920YZPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	XFBGA-8
Number of Outputs	1 Output
Input Voltage (DC)	3.60 V
Output Current	4 A
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	68.0 µA
Output Current (Max)	4 A
Output Current (Min)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	3.6 V
	Show
Size-Length	1.93 mm
Size-Width	0.934 mm
Size-Height	0.31 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
