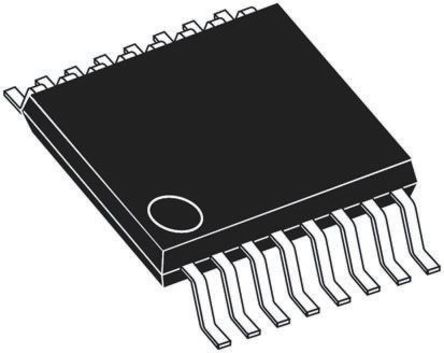

Image is for your reference only,please check specifications for details

TPS40061PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC12147642
Category:
DC to DC Converter
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) Wide Input (10V-55V) up to 1MHz Frequency Synchronous Buck Controller, source/sink DC DC Cntrlr Single-OUT Sync Buck 10V to 55V Input 16Pin HTSSOP EP Tube
Stock Locations:
Availability:
1,883 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.68

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS40061PWP is a synchronous Buck Controller offers design flexibility with a variety of user programmable functions, including soft-start, UVLO, operating frequency, voltage feed-forward, high-side current limit and loop compensation. It is also synchronizable to an external supply. It incorporates the MOSFET gate drivers for external P-channel high-side and N-channel synchronous rectifier (SR) MOSFETs. Gate drive logic incorporates anti-cross conduction circuitry to prevent simultaneous high-side and synchronous rectifier conduction.
Input voltage feed-forward compensation
<1% Internal 0.7V Reference
Programmable fixed-frequency up to 1MHz
Internal gate drive outputs for high-side P-channel and synchronous N-channel MOSFETs
Thermal shutdown
Externally synchronizable
Programmable high-side sense short-circuit protection
Programmable closed-loop soft-start
Green product and no Sb/Br

Show

TPS40061PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Frequency	1.00 MHz
Supply Voltage (DC)	10.0V (min)
Number of Outputs	1 Output
Output Voltage	0.7V ~ 45V
Output Current	10 A
Number of Positions	16 Position
Quiescent Current	1.50 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Thermal Shutdown	Yes
Topology	Buck
Duty Cycle	98 %
Input Voltage (Max)	55 V
Input Voltage (Min)	10 V
Output Voltage (Max)	6 V
Maximum Duty Cycle	0.98
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	10V ~ 55V
Supply Voltage (Max)	55 V
Supply Voltage (Min)	10 V
Input Voltage	10V ~ 55V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
