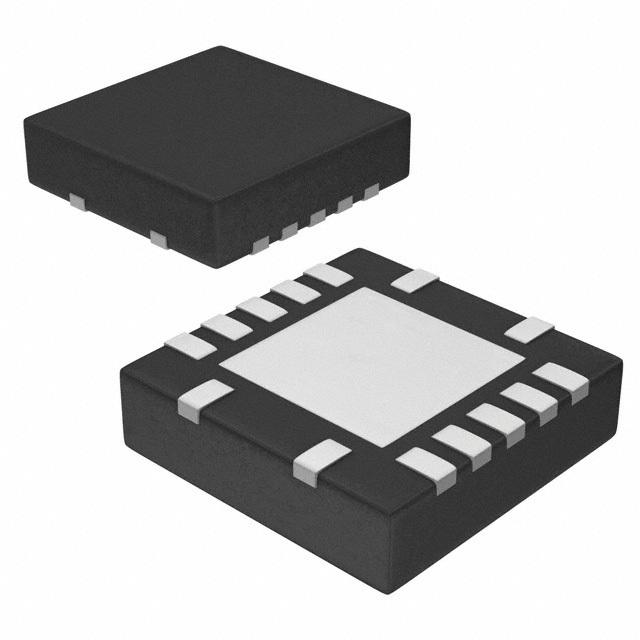

TPS51117RGYR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4874882
Category:
DC to DC Converter
Package:
VQFN-14
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) 1.8V to 28V Input Sync. Step Down Controller with DCAP Mode, Optimized for Light Load Efficiency DC-DC Cntrlr Single-OUT Step Down 550kHz 14Pin VQFN EP T/R
Stock Locations:
Availability:
1,221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.25

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS51117 is a cost effective, synchronous buck controller for POL voltage regulation in notebook PC applications. The controller is dedicated for Adaptive On-Time D-CAP™ Mode operation that provides ease of use, low external component count, and fast transient response. Auto-skip mode for high efficiency down to the milli-ampere load range, or PWM-only mode for low noise operation is selectable.
FEATURES
• High Efficiency, Low Power Consumption, 4.5-μA Typical Shutdown Current
• Fixed Frequency Emulated On-Time Control, Adjustable from 100 kHz to 550 kHz
• D-CAP™ Mode with 100-ns Load Step Response
• < 1% Initial Reference Accuracy
• Output Voltage Range: 0.75 V to 5.5 V
• Wide Input Voltage Range: 1.8 V to 28 V
• Selectable Auto-Skip/PWM-Only Operation
• Temperature Compensated (4500 ppm/°C)
Low-Side RDS(on) Overcurrent Sensing
• Negative Overcurrent Limit
• Integrated Boost Diode
• Integrated OVP/UVP and Thermal Shutdown
• Power-Good Signal
• Internal 1.2-ms Voltage Softstart
• Integrated Output Discharge (Softstop)

Show

TPS51117RGYR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	VQFN-14
Supply Voltage (DC)	1.80V (min)
Number of Outputs	1 Output
Input Voltage (DC)	28.0V (max)
Output Voltage	0.75V ~ 5.5V
Output Current	10 A
Power Dissipation	1300 mW
Quiescent Current	400 µA
Number of Regulated Outputs	1 Output
Output Power	1.3 W
Switching Frequency	550 kHz
Thermal Shutdown	Yes
Topology	Buck
Duty Cycle	95 %
Input Voltage (Max)	28 V
Input Voltage (Min)	1.8 V
Output Current (Max)	10 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1300 mW
Supply Voltage	1.8V ~ 28V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	1.8 V
Input Voltage	4.5V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
