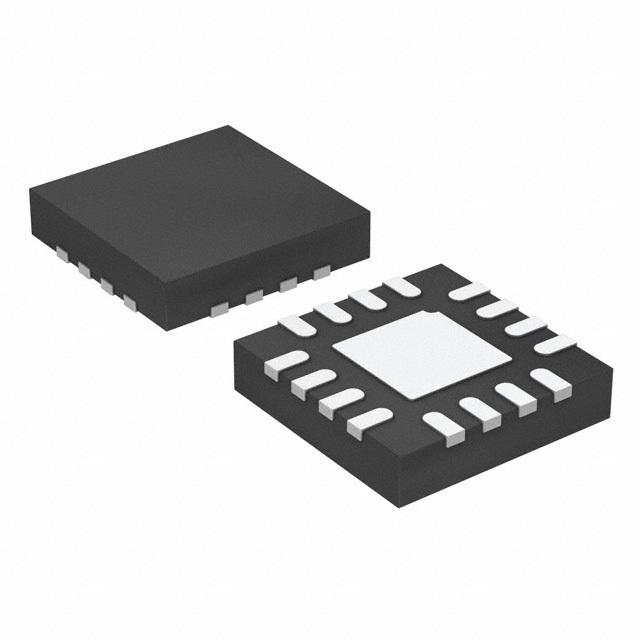

- TPS51219RTER - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3727440
-
Category:Voltage Regulator
-
Package:WFQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:DC-DC Cntrlr Single-OUT Step Down 400kHz/300kHz/670kHz/500kHz 16Pin WQFN EP T/R
-
Stock Locations:
-
Availability:9,160 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.94
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS51219 is a small-sized single buck controller with adaptive on-time control. It provides a choice of control modes (D-CAP™ or D-CAP2™) to meet a wide range of system requirements. It is designed for tight DC regulation requirements such as the VCCIO application for Intel® notebooks. The performance and flexibility of the TPS51219 makes it suitable for low output voltage, high current, PC system power rails and similar point-of-load (POL) power supplies.
- Differential voltage feedback and the voltage compensation function combine to provide high
- precision power to load devices.
- FEATURES
- • Differential Voltage Feedback
- • DC Compensation for Accurate Regulation
- • Wide Input Voltage Range: 3 V to 28 V
- • Output Voltage Range: 0.5 V to 2.0 V with Fixed Options of 1.05 V and 1.00 V
- • Wide Output Load Range: 0 A to 20 A+
- • Adaptive On-Time Modulation with Selectable Control Architecture and Frequency
- – D-CAP™ Mode at 300 kHz/400 kHz for Fast Transient Response
- – D-CAP2™ Mode at 500 kHz/670 kHz for Ceramic Output Capacitor
- • 4700 ppm/°C, Low-Side RDS(on)
- Current Sensing
- • RSENSE Accurate Current Sense Option
- • Internal, 1-ms Voltage Servo Softstart
- • Built-In Output Discharge
- • Power Good Output
- • Integrated Boost Switch
- • Built-In OVP/UVP/OCP
- • Thermal Shutdown (Non-latched)
- • 3 mm × 3 mm, 16-Pin, QFN (RTE) Package
TPS51219RTER Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 16 Pin |
| Case/Package | WFQFN-16 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.5V ~ 2V |
| Output Current | 20 A |
| Quiescent Current | 560 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 400 kHz |
| Topology | Buck |
| Input Voltage (Max) | 28 V |
| Input Voltage (Min) | 3 V |
| Output Current (Max) | 20 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 3V ~ 28V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
