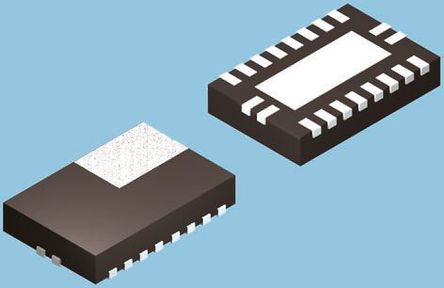

Image is for your reference only,please check specifications for details
- TPS54020RUWT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC7512231
-
Category:DC to DC Converter
-
Package:VQFN-15
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 17V Step Down Single-Out 0.8V to 15V 10A 15Pin VQFN EP T/R
-
Stock Locations:
-
Availability:318 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.43
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54020RUWT is a step-down SWIFT™ Converter with out-of-phase synchronization. The TPS54020 operates at continuous current mode (CCM) at higher load conditions and transitions to eco-mode while skipping pulses to boost the efficiency at light loads. Current limiting on both MOSFETs provides device and system protection. Cycle-by-cycle current limiting in the high-side MOSFET protects for overload situations. Low-side MOSFET zero current detection turns off the low-side MOSFET while operating under light loads. Three selectable current-limit thresholds allow a good fit for various applications. A hiccup or cycle-by-cycle overcurrent protection scheme is also selectable. Thermal shutdown protection disables switching when die temperature exceeds the thermal shutdown trip point and enables switching after the built-in thermal hysteresis and shutdown hiccup time. The SS pin controls the output voltage start-up ramp and allows for selectable soft-start times.
- Integrated 8 and 6mR MOSFETs
- Peak current-mode control
- Eco-mode™ pulse skip for higher efficiency
- Overcurrent protection for both MOSFETs
- Synchronizes to external clock
- Start-up into pre-biased outputs
- Over-temperature and overvoltage protection
- Adjustable soft-start and power sequencing
- Power-good output monitor for undervoltage and overvoltage
- SYNC_OUT function provides output clock signal 180° out-of-phase
- Supported by WEBENCH® software tool
- 0.6V Voltage reference with ±1% accuracy
TPS54020RUWT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 15 Pin |
| Case/Package | VQFN-15 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 15V |
| Output Current | 10 A |
| Number of Positions | 15 Position |
| Quiescent Current | 600 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 990 kHz |
| Topology | Buck |
| Input Voltage (Max) | 17 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 5 V |
| Output Voltage (Min) | 600 mV |
| Output Current (Max) | 10 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5 V |
| Input Voltage | 4.5V ~ 17V |
| Show | |
| Size-Length | 3.6 mm |
| Size-Width | 3.6 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
