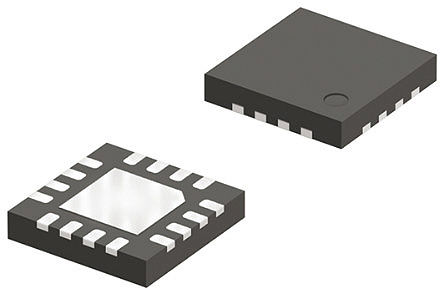

Image is for your reference only,please check specifications for details

TPS54218RTET - TI
Manufacturer:
TI
ManyChip's Part#:
MC12492229
Category:
DC to DC Converter
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 2.95V to 6V Input, 2A, 2MHz Synchronous Step Down SWIFT DC-DC Converter Conv DC-DC 2.95V to 6V Step Down Single-Out 0.8V to 4.5V 2A 16Pin WQFN EP T/R
Stock Locations:
Availability:
200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54218RTET is a synchronous Step-down Switcher with integrated FETs (SWIFT™). The device enables small designs by integrating the MOSFETs, implementing current mode control to reduce external component count and reducing inductor size by enabling up to 2MHz switching frequency. It provides accurate regulation for a variety of loads with an accurate ±1% voltage reference (VREF) over temperature. Efficiency is maximized through the integrated 30mR MOSFETs and a 350µA typical supply current. Using the enable pin, shutdown supply current is reduced to 2µA by entering a shutdown mode. Undervoltage lockout is internally set at 2.6V, but can be increased by programming the threshold with a resistor network on the enable pin. The output voltage startup ramp is controlled by the soft-start pin. An open-drain power good signal indicates the output is within 93 to 107% of its nominal voltage. Frequency fold back and thermal shutdown protects the device during an overcurrent condition.
Synchronizes to external clock
Adjustable soft-start/sequencing
UV and OV power good output
Low operating and shutdown quiescent current
Safe start-up into pre-biased output
Cycle-by-cycle current limit, thermal and frequency fold back protection
Two, 30mR (typical) MOSFETs for high-efficiency at 2A loads
0.8V Voltage reference with ±1% accuracy
Green product and no Sb/Br

Show

TPS54218RTET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Number of Outputs	1 Output
Output Voltage	0.8V ~ 4.5V
Output Current	2 A
Number of Positions	16 Position
Quiescent Current	350 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2 MHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	6 V
Input Voltage (Min)	2.95 V
Output Voltage (Max)	4.5 V
Output Voltage (Min)	800 mV
Output Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.95 V
Input Voltage	2.95V ~ 6V
	Show
Size-Length	3.15 mm
Size-Width	3.15 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
