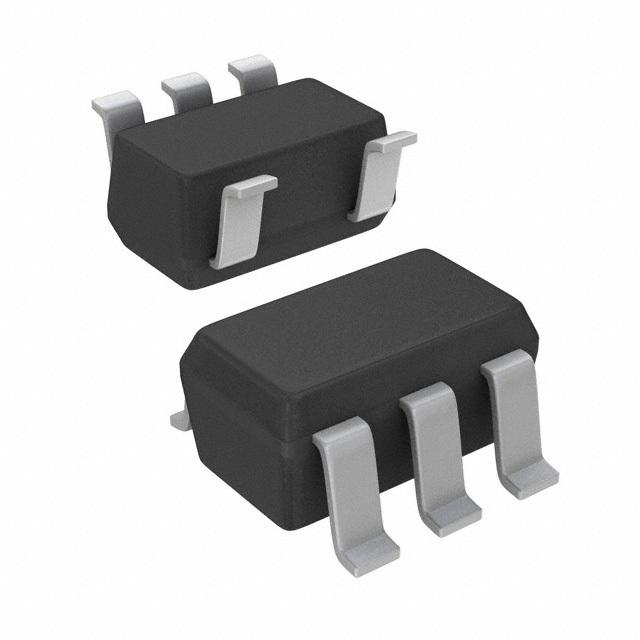

Image is for your reference only,please check specifications for details

TPS560200DBVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1052258
Category:
DC to DC Converter
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 17V Step Down Single-Out 0.8V to 6.5V 0.5A 5Pin SOT-23 T/R
Stock Locations:
Availability:
15 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TPS560200 is an 17-V, 500-mA, low-Iq, adaptive on-time D-CAP2 mode synchronous monolithic buck converter with integrated MOSFETs in easy-to-use 5-pin SOT-23 package.
The TPS560200 lets system designers complete the suite of various end-equipment power bus regulators with a cost-effective, low component count and low standby current solution. The main control loop for the device uses the D-CAP2 mode control that provides a fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and advanced Eco Mode operation at light loads.
Features
• Integrated Monolithic 0.95-Ω High-Side and 0.33- Ω Low-Side MOSFETs
• 500-mA Continuous Output Current
• Output Voltage Range: 0.8 V to 6.5 V
• 0.8-V Voltage Reference With ±1.3% Accuracy Over Temperature
• Auto-Skip Advanced Eco-Mode™ for High Efficiency at Light Loads
• D-CAP2™ Mode Enables Fast Transient Responses
• No External Compensation Needed
• 600-kHz Switching Frequency
• 2-ms Internal Soft-Start
• Safe Start-Up into Prebiased VOUT
• Thermal Shutdown
• –40°C to 125°C Operating Junction Temperature Range
• Available in 5-Pin SOT-23 Package
Applications
• Set Top Boxes
• Modems
• DTBs
• ASDLs

Show

TPS560200DBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Output Voltage	0.8V ~ 6.5V
Output Current	500 mA
Number of Positions	5 Position
Quiescent Current	60.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	600 kHz
Topology	Buck
Input Voltage (Max)	17 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	6.5 V
Output Voltage (Min)	800 mV
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 17V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2018/06/27
