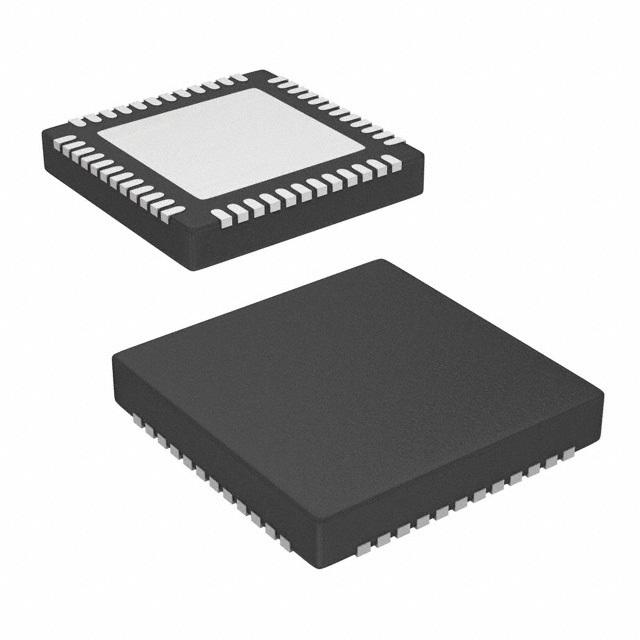

TPS59641RSLT - TI
Manufacturer:
TI
ManyChip's Part#:
MC36089233
Category:
DC to DC Converter
Package:
VQFN-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS59641RSLT DC-DC Controller, D-CAP+ Architecture, 3V to 28V, 2Outputs, Buck, 600kHz, VQFN-48
Stock Locations:
Availability:
1,855 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS59641RSLT is a 2-channel Step-down Controller with two integrated gate drivers. Advanced control features such as D-CAP+ architecture with overlapping pulse support (undershoot reduction, USR) and overshoot reduction (OSR) provide fast transient response, lowest output capacitance and high efficiency. All of these controllers also support single-phase operation for light loads. The full complement of IMVP-7 I/O is integrated into the controllers including dual PGOOD signals, ALERT and VR_HOT. Adjustable control of VCORE slew rate and voltage positioning round out the IMVP-7 features. In addition, the controllers" CPU channel includes two high-current FET gate drivers to drive high-side and low-side N-channel FETs with exceptionally high speed and low switching loss. The TPS59641 is specifically designed for a VBOOT level of 1.1V.
Supports CPU and GPU outputs
Single-phase GPU channel
Full IMVP-7 mobile feature set including digital current monitor
8-bit DAC with 0.25 to 1.52V Output range
Optimized efficiency at light and heavy loads
VCORE Overshoot reduction (OSR)
VCORE Undershoot reduction (USR)
Accurate, adjustable voltage positioning
8 Independent frequency selections per channel (CPU/GPU)
Patent Pending AutoBalance™ phase balancing
Selectable 8-level current limit
Two integrated fast FET drivers with integrated boost FET
Internal driver bypass mode for use with DrMOS devices
Green product and no Sb/Br

Show

TPS59641RSLT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Supply Voltage (DC)	3.00V (min)
Number of Outputs	2 Output
Output Voltage	0.25V ~ 1.52V
Number of Positions	48 Position
Switching Frequency	600 kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	28 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 28V
	Show
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
