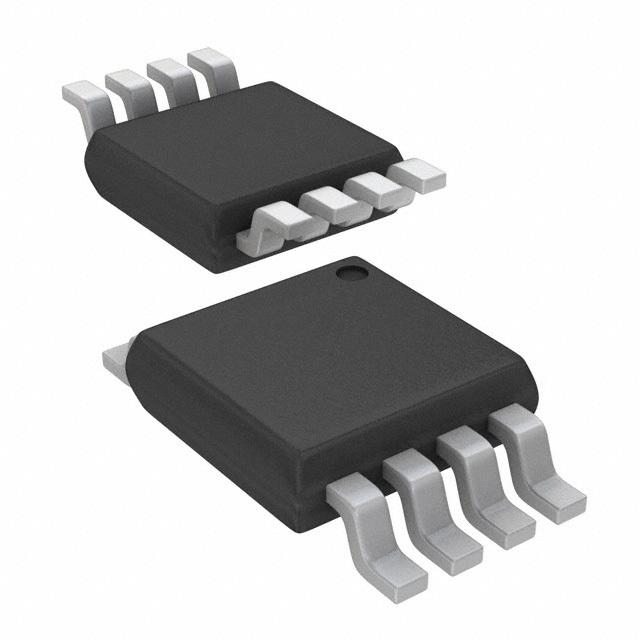

Image is for your reference only,please check specifications for details

TPS60241DGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC19477169
Category:
DC to DC Converter
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Step-Up Charge Pump Regulator 170 uVrms Zero-Ripple Switched Cap Boost Converter With Fixed 5V Output For VCO Supply Charge Pump STPUP 5V 25mA 8Pin VSSOP T/R
Stock Locations:
Availability:
299 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.92

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS60241DGKT is a zero-ripple charge-pump switched cap Boost Converter with fixed 5V output for VCO supply. The switched capacitor voltage converter ideally suited for voltage-controlled oscillator (VCO) and phase-locked loop (PLL) applications that require low noise and tight tolerances. Its dual-cap design uses four ceramic capacitors to provide ultra-low output ripple with high efficiency, while eliminating the need for inefficient linear regulators. The TPS6024x device operates down to 1.8V, supporting a 3.3/2.7/3V output from two-cell, nickel or alkaline-based chemistries, whereas the TPS60241 works with 2.7 to 5.5V input voltage providing a 5V output. The high switching frequency promotes the use of small surface-mount capacitors, saving board space. The shutdown mode of the converter conserves battery energy. The device is thermally protected and current-limited for reliable operation even under persisting fault conditions.
Minimum number of external components - No inductors, only small ceramic chip capacitors
Thermal protection and current limit
170µVrms Zero ripple output - at 20Hz to 10MHz bandwidth
Up to 90% efficiency
0.1µA Shutdown mode
Green product and no Sb/Br

Show

TPS60241DGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Frequency	160 kHz
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	12 mA
Number of Positions	8 Position
Power Dissipation	0.376 W
Quiescent Current	250 µA
Number of Regulated Outputs	1 Output
Output Power	376 mW
Switching Frequency	160 kHz
Topology	Boost
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	5.125 V
Output Voltage (Min)	5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	376 mW
Accuracy	2.5 %
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Min)	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
