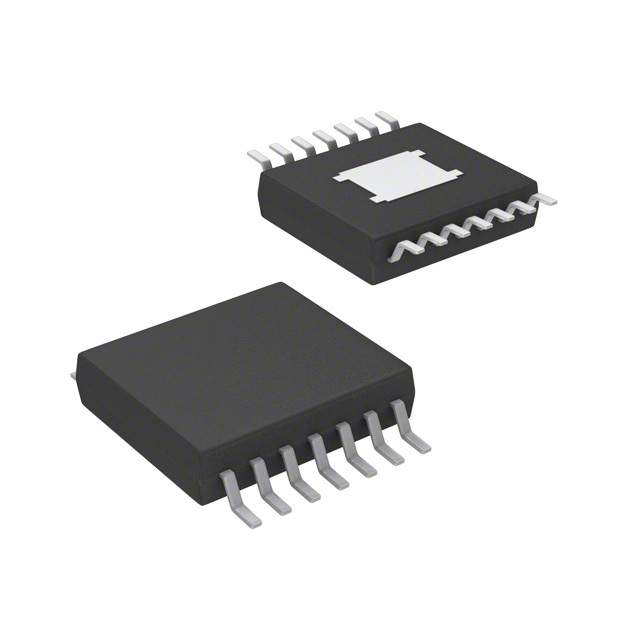

TPS61175PWPR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1320793
Category:
DC to DC Converter
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.9V to 18V Step Up Single-Out 2.9V to 38V 3A 14Pin HTSSOP EP T/R
Stock Locations:
Availability:
607 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.86

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TPS61175 device is a monolithic switching regulator with integrated 3-A, 40-V power switch. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC, and flyback. The device has a wide input voltage range to support application with input voltage from multicell batteries or regulated 5-V, 12-V power rails.
The TPS61175 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is set by either an external resistor or an external clock signal. The user can program the switching frequency from 200 kHz to 2.2 MHz.
The device features a programmable soft-start function to limit inrush current during start-up, and has other built-in protection features, such as pulse by-pulse overcurrent limit and thermal shutdown. The TPS61175 is available in 14-pin HTSSOP package with PowerPad.
Features
• 2.9-V to 18-V Input Voltage Range
• 3-A, 40-V Internal Switch
• High-Efficiency Power Conversion: Up to 93%
• Frequency Set by External Resistor: 200 kHz to 2.2 MHz
• Synchronous External Switching Frequency
• User-Defined Soft-Start into Full Load
• Skip-Switching Cycle for Output Regulation at Light Load
• 14-Pin HTSSOP Package With PowerPad™
• Create a Custom Design Using the TPS61175 with the WEBENCH Power Designer
Applications
• 5-V to 12-V, 24-V Power Conversion
• Supports SEPIC and Flyback Topologies
• ADSL Modems
• TV Tuners

Show

TPS61175PWPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Number of Outputs	1 Output
Output Voltage	2.9V ~ 38V
Output Current	3 A
Number of Positions	14 Position
Quiescent Current	3.00 mA
Number of Regulated Outputs	1 Output
Switching Frequency	2.2 MHz
Input Voltage (Max)	18 V
Input Voltage (Min)	2.9 V
Output Voltage (Max)	38 V
Output Voltage (Min)	2.9 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.9V ~ 18V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
