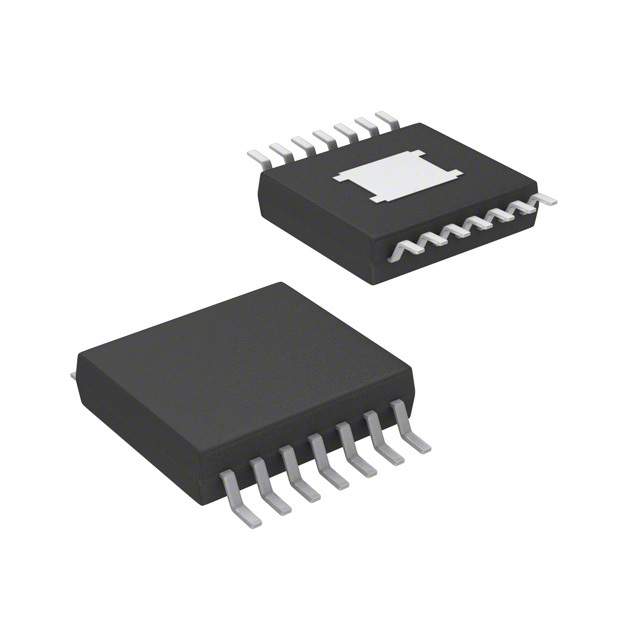

- TPS61175QPWPRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC19954160
-
Category:DC to DC Converter
-
Package:HTSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.9V to 18V Step Up Single-Out 2.9V to 38V Automotive 14Pin HTSSOP EP T/R
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 23.33
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TPS61175-Q1 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It can be configured in several standard switching-regulator topologies, including boost, SEPIC and flyback. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V, 12-V power rails.
- The TPS61175-Q1 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is either set by an external resistor or an external clock signal. The user can program the switching frequency from 200-kHz to 2.2-MHz.
- The device features a programmable soft-start function to limit inrush current during start-up, and has built-in other protection features, such as pulse by-pulse over current limit and thermal shutdown. The TPS61175-Q1 is available in 14-pin HTSSOP package with PowerPAD.
- Features
- • AEC-Q100 Qualified with the Following Results:
- – Device Temperature Grade 1: -40°C to 125°C Junction Operating Temperature Range
- • 2.9-V to 18-V Input Voltage Range
- • 3A, 40V Internal Switch
- • High Efficiency Power Conversion: Up to 93%
- • Frequency Set by External Resistor: 200-kHz to 2.2-MHz
- • Synchronous External Switching Frequency
- • User Defined Soft Start into Full Load
- • Skip-Switching Cycle for Output Regulation at Light Load
- • 14-pin HTSSOP Package with PowerPAD™
- Applications
- • 5V to 12V, 24V power conversion
- • Supports SEPIC, Flyback topology
- • ADSL Modems
- • TV Tuner
TPS61175QPWPRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | HTSSOP-14 |
| Number of Outputs | 1 Output |
| Output Voltage | 2.9V ~ 38V |
| Output Current | 3.8 A |
| Quiescent Current | 3.00 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 200kHz ~ 2.2MHz |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 2.9 V |
| Output Voltage (Max) | 38 V |
| Output Voltage (Min) | 2.9 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 18 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.2 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
