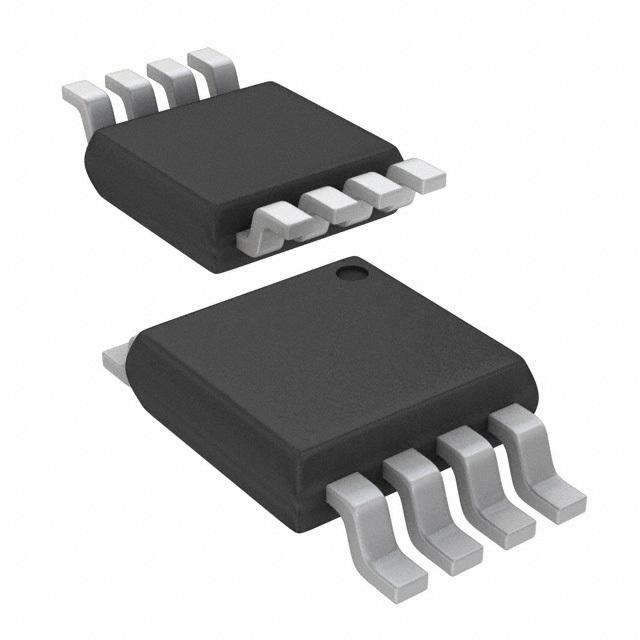

Image is for your reference only,please check specifications for details

TLV1702AQDGKRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC17602046
Category:
Comparator, Analog Comparator IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV1702AQDGKRQ1 Analog Comparator, Micropower, 1, 2.2V to 36V, ± 1.1V to ± 18V, VSSOP, 8Pins
Stock Locations:
Availability:
261 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.4

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV1702-Q1 and TLV1704-Q1 (TLV170x-Q1) devices offers a wide supply range, rail-to-rail inputs, low quiescent current, and low propagation delay. All these features come in industry-standard, extremely-small packages, making these devices the best general-purpose comparators available.
The open collector output offers the advantage of allowing the output to be pulled to any voltage rail up to 36 V above the negative power supply, regardless of the TLV170x-Q1 supply voltage.
The device is a dual channel microPower comparator. Low input offset voltage, low input bias currents, low supply current, and open-collector configuration make the TLV170x-Q1 device flexible enough to handle almost any application, from simple voltage detection to driving a single relay.
The device is specified for operation across the expanded industrial temperature range of –40°C to +125°C.

Show

TLV1702AQDGKRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Output Current	20 mA
Number of Positions	8 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
