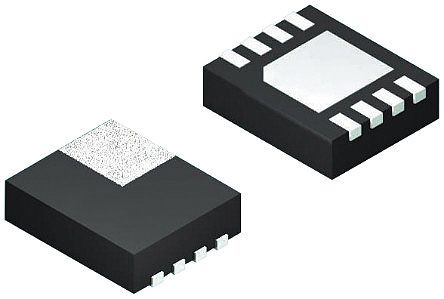

Image is for your reference only,please check specifications for details

TPS62082DSGT - TI
Manufacturer:
TI
ManyChip's Part#:
MC11715896
Category:
Voltage Regulator
Package:
WFDFN-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.3V to 6V Step Down Single-Out 3.3V 1.2A 8Pin WSON EP T/R
Stock Locations:
Availability:
1,626 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.4

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS62082DSGT is a Step-down Converter with an input voltage range of 2.3 to 6V, common battery technologies are supported. Alternatively, the device can be used for low voltage system power rails. It focuses on high efficiency step-down conversion over a wide output current range. At medium to heavy loads, the converter operates in PWM mode and automatically enters power save mode operation at light load currents to maintain high efficiency over the entire load current range. To maintain high efficiency at very low load or no load currents, a Snooze Mode with an ultra-low quiescent current is implemented. This function, enabled by the mode pin, increases the run-time of battery driven applications and keeps the standby current at its lowest level to meet green energy standards targeting a low stand-by current. To address the requirements of system power rails, the internal loop compensation allows a large selection of external output capacitor values in excess of 100µF.
DCS-Control™ Architecture for fast transient regulation
Power save mode for light-load efficiency
Output discharge function
Short-circuit protection
Power-good output
Thermal shutdown
100% Duty cycle for lowest dropout
Green product and no Sb/Br

Show

TPS62082DSGT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WFDFN-8
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	1.2 A
Number of Positions	8 Position
Quiescent Current	6.00 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2 MHz
Topology	Buck
Input Voltage (Max)	6 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	4 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1.2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3 V
Input Voltage	2.3V ~ 6V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
