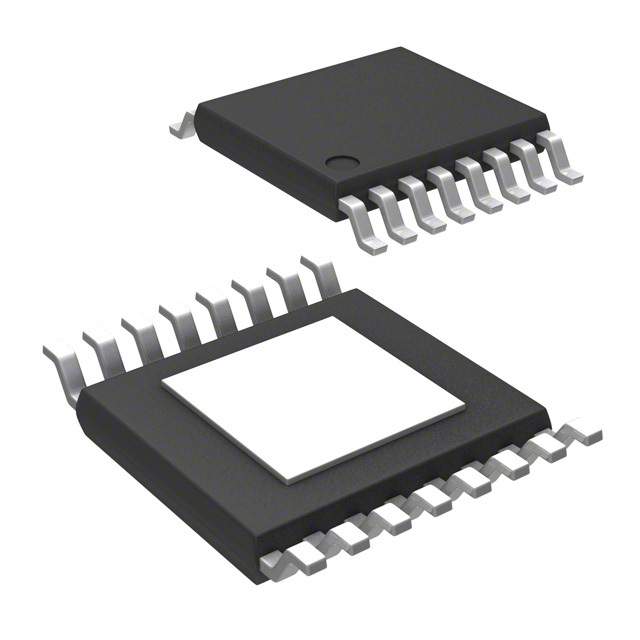

Image is for your reference only,please check specifications for details

TPS62110HPWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC6226218
Category:
Voltage Regulator
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3.1V to 17V Step Down Single-Out 1.2V to 16V 1.5A 16Pin HTSSOP EP Tube
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 76.15

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS62110HPWP is a low-noise synchronous step-down DC-to-DC Converter ideally suited for systems powered from a 2-cell Li-ion battery or from a 12 or 15V rail. The TPS62110 is a synchronous PWM converter with integrated N-channel and P-channel power MOSFET switches. Synchronous rectification is used to increase efficiency and to reduce external component count. To achieve highest efficiency over a wide load current range, the converter enters a power-saving, pulse-frequency modulation (PFM) mode at light load currents. Operating frequency is typically 1MHz, allowing the use of small inductor and capacitor values. The device can be synchronized to an external clock signal in the range of 0.8 to 1.4MHz. For low noise operation, the converter can be operated in PWM-only mode. In the shutdown mode, the current consumption is reduced to less than 2µA.
Up to 1.4MHz synchronizable to external clock signal
High efficiency over a wide load current range due to PFM/PWM operation mode
100% Maximum duty cycle for lowest dropout
Over-temperature and overcurrent protection
Up to 95% efficiency
32µA Typical quiescent current
Green product and no Sb/Br

Show

TPS62110HPWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Number of Outputs	1 Output
Output Voltage	1.2V ~ 16V
Output Current	1.5 A
Number of Positions	16 Position
Quiescent Current	32.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Topology	Buck
Input Voltage (Max)	17 V
Input Voltage (Min)	3.1 V
Output Voltage (Max)	16 V
Output Voltage (Min)	1.2 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Input Voltage	3.1V ~ 17V
	Show
Operating Temperature	-55℃ ~ 175℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
