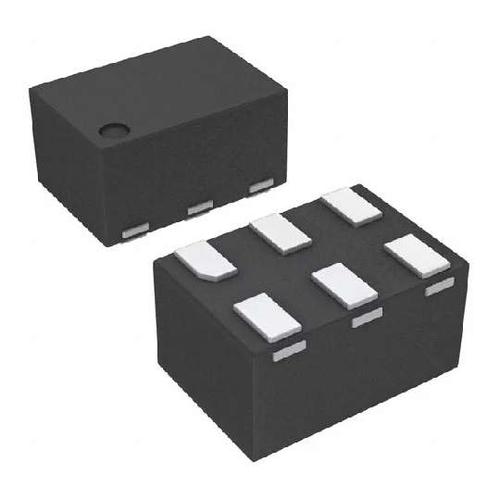

- TPS62230DRYT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC30071284
-
Category:Voltage Regulator
-
Package:UFDFN-6
-
Datasheet:Datasheet 3D Model
-
Description:Step-Down Regulator 3MHz Ultra Small Step Down Converter in 1x1.5 SON Package Conv DC-DC 2.05V to 6V Step Down Single-Out 2.5V 0.5A 6Pin USON T/R
-
Stock Locations:
-
Availability:290 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.36
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS62230DRYT is a synchronous Step-down DC-to-DC Converter supports up to 500mA output current and allows the use of tiny chip inductors and capacitors. With a wide input voltage range of 2.05 to 6V, the device supports applications powered by li-ion batteries with extended voltage range. The minimum input voltage of 2.05V allows as well the operation from Li-primary or two alkaline batteries. Different fixed output voltage versions are available from 1 to 3.3V. The TPS6223x series features switch frequency up to 3.8MHz. At medium to heavy loads, the converter operates in pulse width modulation (PWM) mode and automatically enters power-save mode operation at light load currents to maintain high efficiency over the entire load current range. Because of its excellent power supply rejection ratio (PSRR) and AC load regulation performance, the device is also suitable to replace linear regulators to obtain better power conversion efficiency.
- Up to 94% efficiency
- Excellent AC and transient load regulation
- Optimized power-save mode for low output ripple voltage
- Forced PWM mode operation
- Soft-start with typical 100µs start-up time
- 100% Duty cycle for lowest dropout
- Green product and no Sb/Br
TPS62230DRYT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | UFDFN-6 |
| Frequency | 3.00 MHz |
| Number of Outputs | 1 Output |
| Output Voltage | 2.5 V |
| Output Current | 500 mA |
| Number of Positions | 6 Position |
| Quiescent Current | 22.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 3 MHz |
| Topology | Buck |
| Switching Current | 0.85 A |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 2.05 V |
| Output Voltage (Min) | 2.5 V |
| Output Current (Max) | 0.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.05 V |
| Input Voltage | 2.05V ~ 6V |
| Show | |
| Size-Height | 0.55 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
