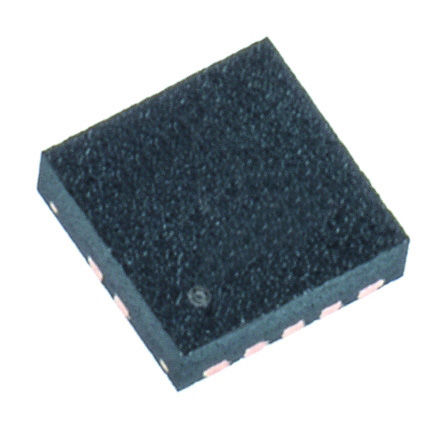

Image is for your reference only,please check specifications for details

TPS63700DRCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8970327
Category:
DC to DC Converter
Package:
VSON EP-10
Datasheet:
Datasheet 3D Model
Description:
Inverting Regulator Adjustable, -15V Output Inverting DC-DC Converter in 3x3 QFN Conv DC-DC 2.7V to 5.5V Inv Single-Out -2V to -15V 0.36A 10Pin VSON EP T/R
Stock Locations:
Availability:
86 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.8

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS63700DRCT is an Inverting DC/DC Converter generating a negative output voltage down to -15V with output currents up to 360mA, depending on input-voltage to output-voltage ratio. With a peak efficiency of 84%, the device is ideal for portable battery-powered equipment. The input voltage range of 2.7 to 5.5V allows it to be directly powered from a Li-ion battery, from 3-cell NiMH/NiCd, from a 3.3 or 5V supply rail. The inverter operates with a fixed-frequency pulse width modulation (PWM) control topology. The device has an internal current limit, overvoltage protection and a thermal shutdown for highest reliability under fault conditions. A switching frequency of typically 1.4MHz allows the use of small external components enabling a small solution size.
Adjustable output voltage down to -15V
1000mA Typical switch current limit
Up to 84% efficiency
Typical 1.4MHz fixed-frequency PWM operation
Thermal shutdown
Typical -19V output overvoltage protection
1.5µA Shutdown current
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS63700DRCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON EP-10
Frequency	1.38 MHz
Supply Voltage (DC)	5.50V (max)
Number of Outputs	1 Output
Output Voltage	-2.00 V
Output Current	360 mA
Number of Positions	10 Position
Quiescent Current	970 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.38 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	0.36 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
