Description
- Description
- The TPS65200 device integrates a high-efficiency, USB-friendly switched-mode charger with OTG support for single-cell Li-ion and Li-polymer batteries, D+D- detection, a 50-mA fixed-voltage LDO, a high efficiency WLED boost converter, and high-accuracy current-shunt monitor into a single chip.
- Features
- • Battery Switching Charger, WLED Driver, and Current Shunt Monitor in a Single Package
- • Battery Charger
- – Charges Faster Than Linear Chargers
- – High-Accuracy Voltage and Current Regulation
- – Input Current Regulation Accuracy: ±5% (100 mA, 500 mA)
- – Charge Voltage Regulation Accuracy:
- ±0.5% (25°C)
- ±1% (0 - 125°C)
- – Charge Current Regulation Accuracy: ±5%
- – Bad Adaptor Detection and Rejection
- – Safety Limit Register for Maximum Charge Voltage and Current Limiting
- – High-Efficiency Mini-USB/AC Battery Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs
- – Built-In Input Current Sensing and Limiting
- – Integrated Power FETs for Up to 1.25-A Charge Rate
- – Programmable Charge Parameters through I2C Interface (Up to 400 Kbps):
- – Input Current
- – Fast-Charge/Termination Current
- – Charge Voltage (3.5 V - 4.44 V)
- – Safety Timer
- – Termination Enable
- – Synchronous Fixed-Frequency PWM Controller Operating at 3 MHz With 0% to 99.5% Duty Cycle
- – Safety Timer With Reset Control
- – Reverse Leakage Protection Prevents Battery Drainage
- – Thermal Regulation and Protection
- – Input/Output Overvoltage Protection
- – Automatic Charging
- – Boost Mode Operation for USB OTG
- – Input Voltage Range (VSYS): 2.5 V to 4.5 V
- – Output Voltage for VBUS: 5 V
- • WLED Driver
- – 35-V Open LED Protection for Up to 8 LEDs
- – 200-mV Reference Voltage With ±2% Accuracy
- – Built-In Soft Start for WLED Boost
- – Up to 90% Efficiency
- • Current Shunt Monitor
- – Fixed Gain of 25 V/V
- – Input Referred Offset Voltage Less Than ±40 µV Typical Enables Use of Shunt Resistors as Low as 20 mΩ
- – Buffered Reference Voltage
- • Package
- – 36-Ball, 0.4-mm Pitch DSBGA Package
- Applications
- • Mobile Phones and Smart Phones
- • MP3 Players
- • Portable Navigation Devices
- • Handheld Devices

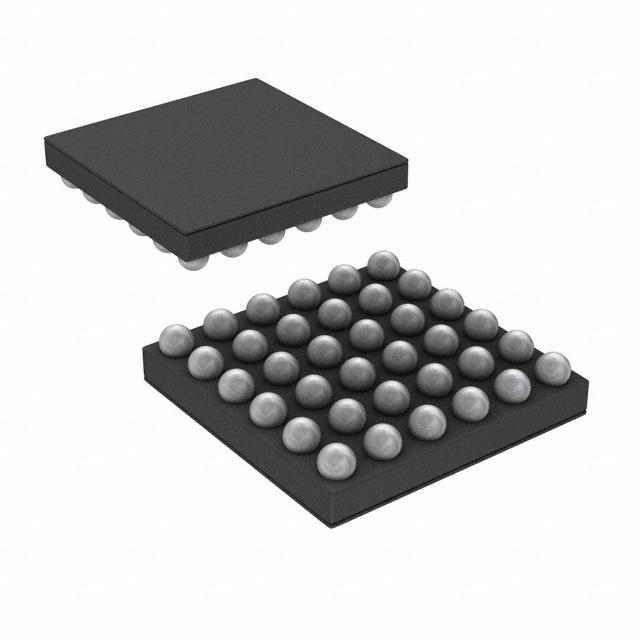

TPS65200YFFR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | DSBGA-36 |
| Output Voltage | 5 V |
| Output Current | 1.25 A |
| Number of Regulated Outputs | 2 Output |
| Supply Voltage | 4V ~ 6V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
